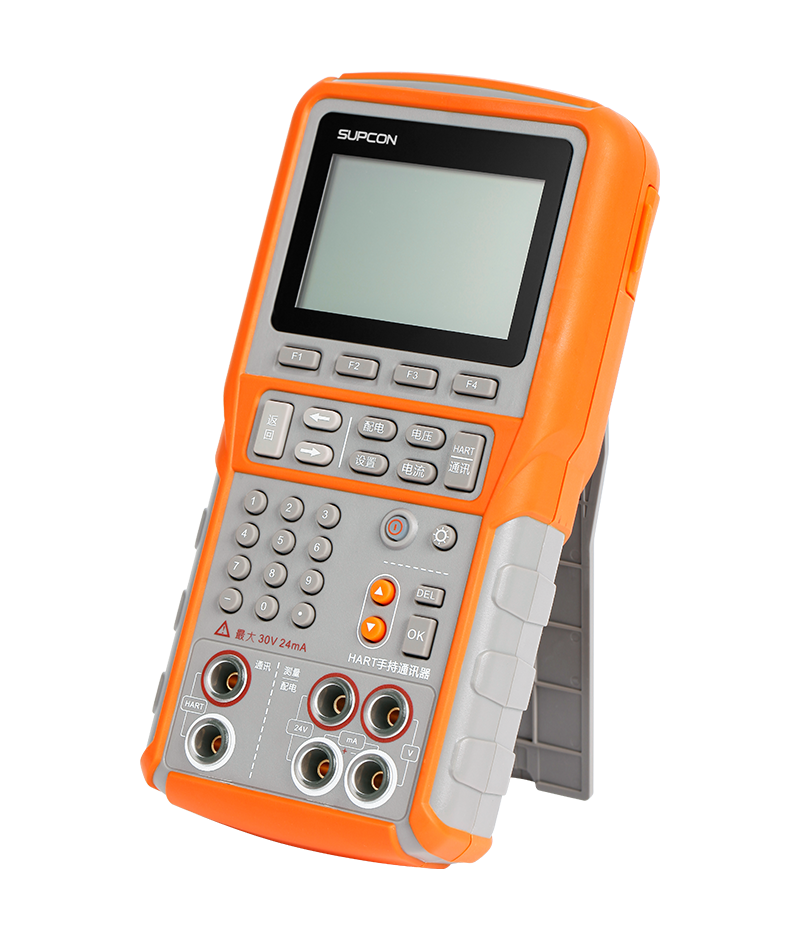

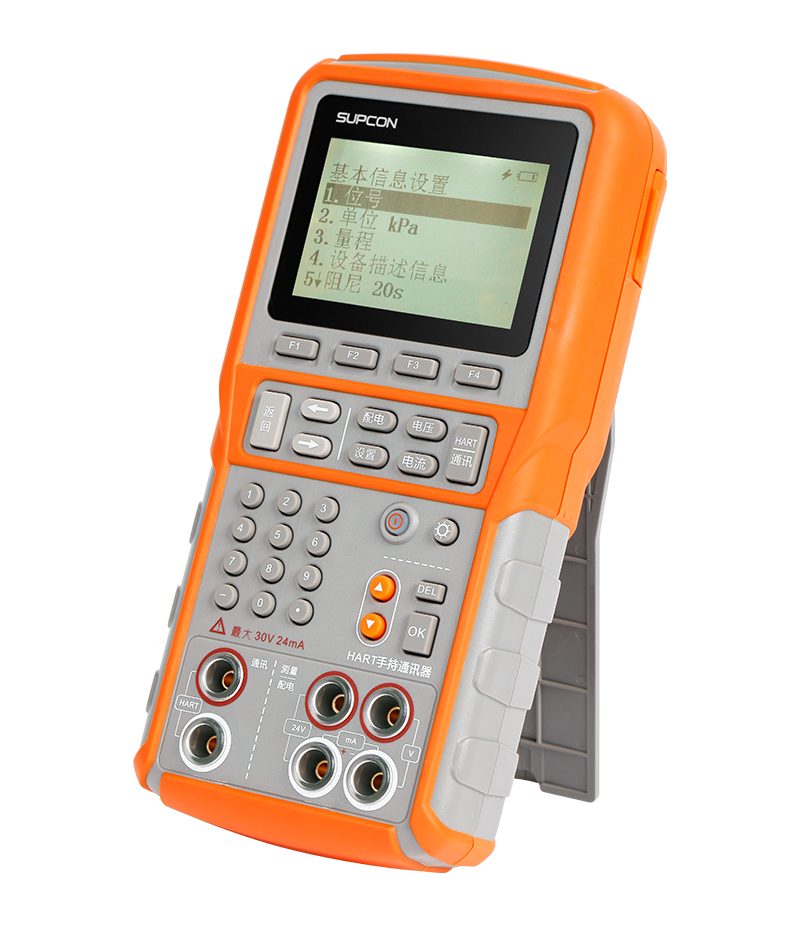

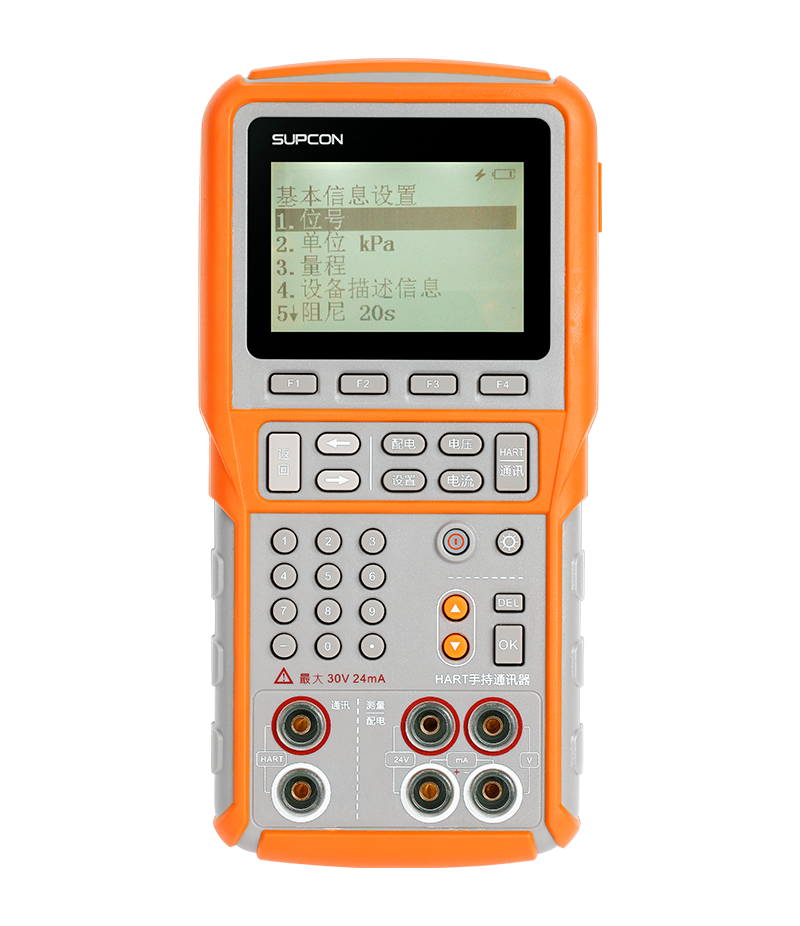

X207 HART Handheld Communicator is a portable device that communicates with a HART protocol smart pressure transmitter, which is fully compliant with the HART protocol second master device specification, it is a necessary tool for testing and parameter adjustment of transmitter in industrial field. X207 which not only supports basic commands such as reading device type, reading master variable, modifying tag number, modifying range, etc., and also supports reading various process variables, modifying the output mode and other general commands and special commands such as sensor adjustment and output adjustment.
Product Description
· Accuracy: 0.02%
· Chinese operation interface
· Battery level indication
· Miniaturized design for hand-held portability
· 4.2Ah lithium battery
· 24V power distribution output
· Voltage/current measurement
· Universal micro-usb charging interface with mobile phone
· Compatible with HART protocol
· 3.5-inch white LED-backlit LCD
· Integrated two-color casing, strong and durable and non-staining
· Coexistence of function keys and numeric keys
