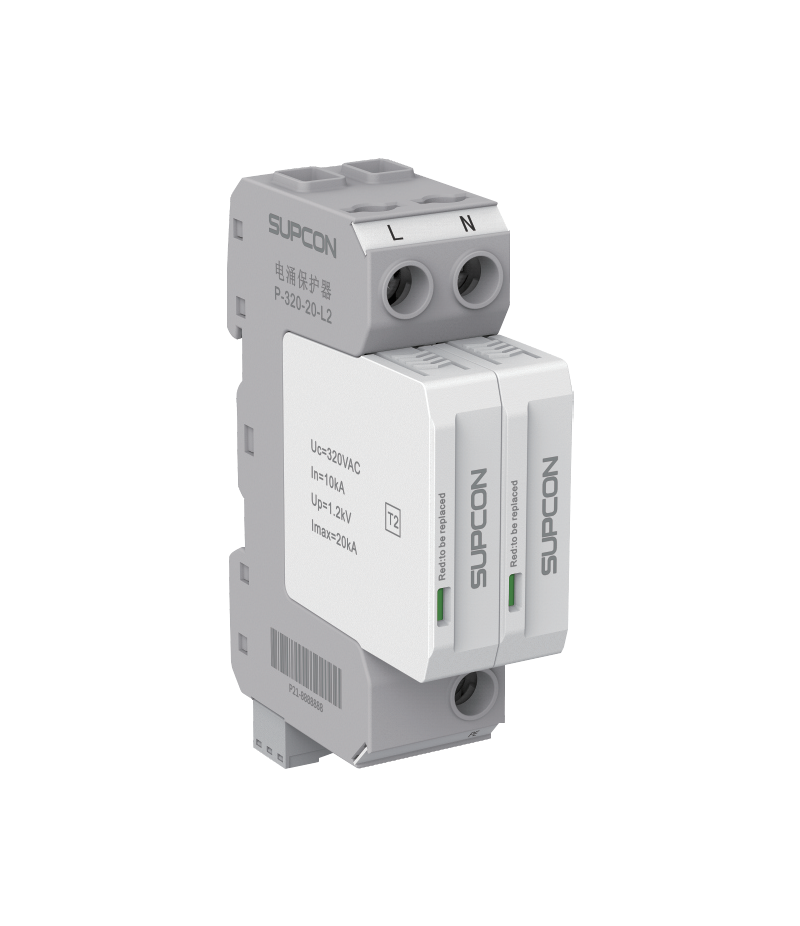

The P series power SPDs are designed according to IEC and GB standards. They can instantaneously connect the protected circuit to an equipotential system during a surge, limiting the voltage to a safe level to protect user equipment.
Product Description
· Working status indicator
· Hot-swappable, easy maintenance
· Remote signaling function
TECHNICAL PARAMETERS
| 技术参数 规格型号 | P-320-20-L2 P-320-20-L4 | P-385-40-L2 P-385-40-L4 | P-60-40-L2 | |
| 额定工作电压Un | 220VDC | 220VDC | 24V DC | |
| 最大工作电压Uc | 320V AC | 385V AC | 90VDC/60VAC | |
| 标称放电电流In(8/20μs) | 10kA | 20mA | 20kA | |
| 最大放电电流Imax(8/20μs) | 20kA | 40kA | 40kA | |
| 电压保护水平Up | <1.2kV | <1.7kV | <600V | |
| 响应时间 | <25ns | <25ns | <25ns | |
| 漏电流 | <10uA | <10uA | <10μA | |
| 最大后备保护熔丝 | 40A gG | 80A gG | 80A gG | |
| 短路耐受ISCCR(无外部脱离装置) | 1000A | 1000A | 1000A | |
| 遥信接口 | 250VAC/0.5A 24VDC/0.5A | 250VAC/0.5A 24VDC/0.5A | 250VAC/0.5A 24VDC/0.5A | |
| 接线线径(单股/多股) | (4-25)mm² (4-16)mm² | (4-25)mm² (4-16)mm² | (4-25)mm² (4-16)mm² | |
| 通用指标 | 通用参数 | |||
| 工作状态指示 | 绿色：正常 红色：失效 | |||
| 工作温度 | (-40~+70)℃ | |||
| 相对湿度 | (5~95)% | |||
| 外壳防护等级(IEC60529) | IP 20 | |||
| 外壳材料/阻燃等级(UL94) | PA66/V0 | |||
| 安装 | DIN35mm标准导轨 | |||
| 测试标准 | GB/T18802.1/IEC61643-11 | |||
