Product Description
· High conversion accuracy
· Triple redundancy circuit design
· Plug-and-play terminals, allowing hot-swappable connections for easy installation and maintenance
· Comprehensive circuit fault indicators for quick location and troubleshooting of faults in the field
· Functional versatility to meet the broadest needs in signal isolation, power distribution, and signal transmission for process control
· Three-port isolation for input/output signals and power, forming a fully floating system, significantly simplifying the handling of field issues
· Isolating fault points to prevent a single point of failure from affecting the entire system; even in the event of a lightning strike, the system can avoid widespread paralysis to the maximum extent
· No need for grounding, eliminating interference from ground loops

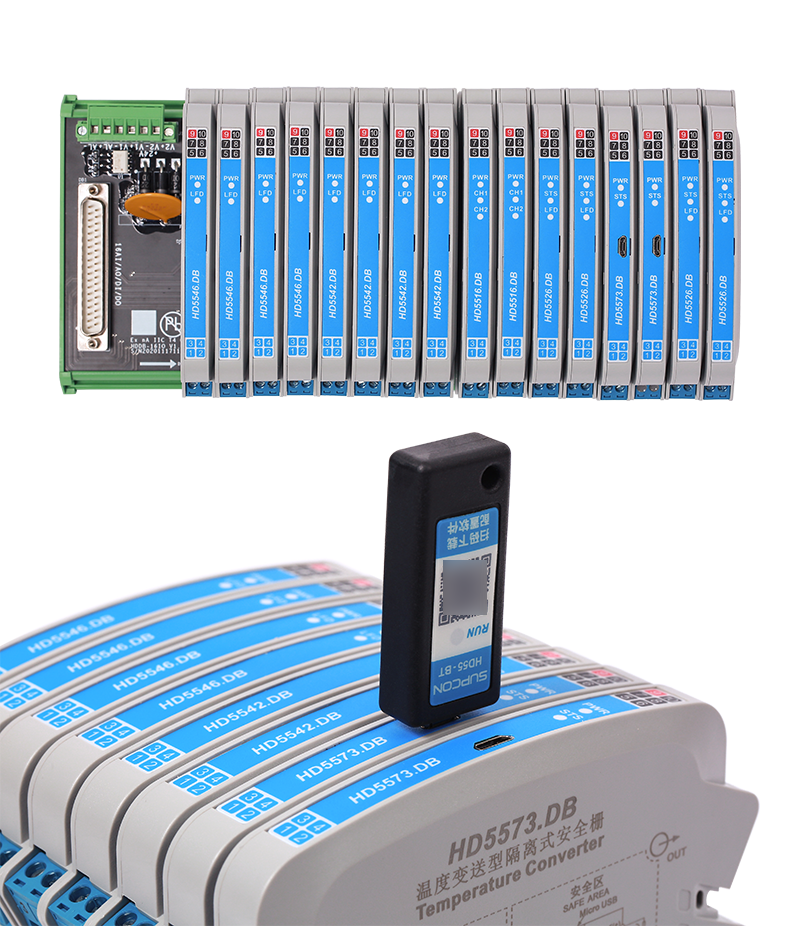

· Multiple configuration schemes: dedicated communication cables and wireless Bluetooth configuration

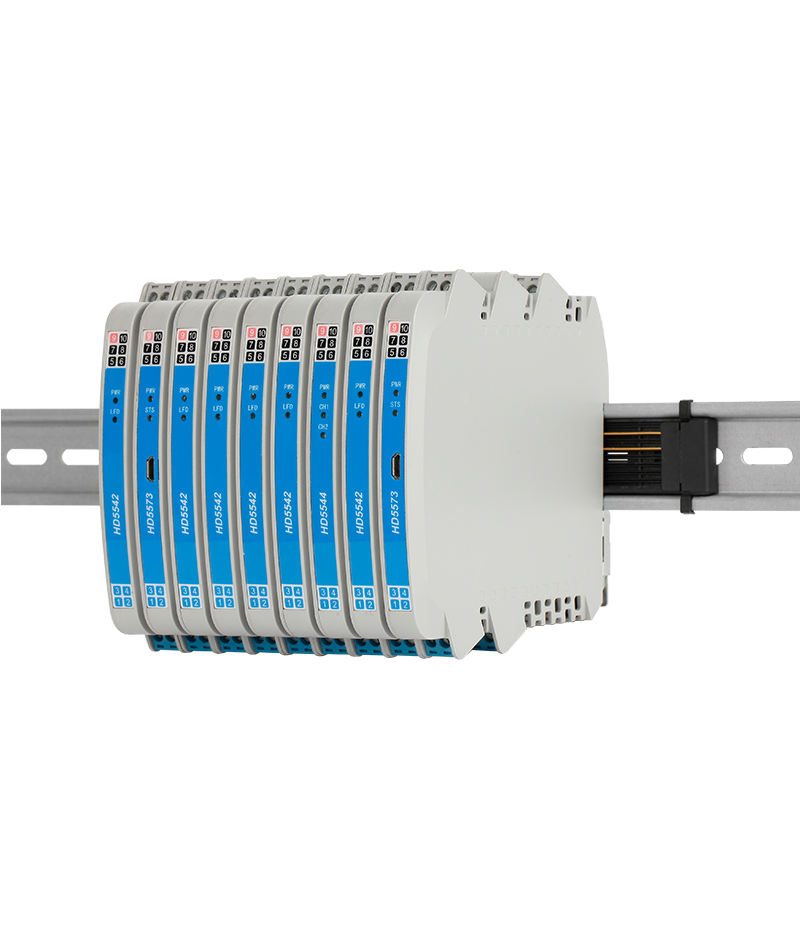

· Equipped with rail-mounted power supply functionality, significantly reducing cabinet wiring work

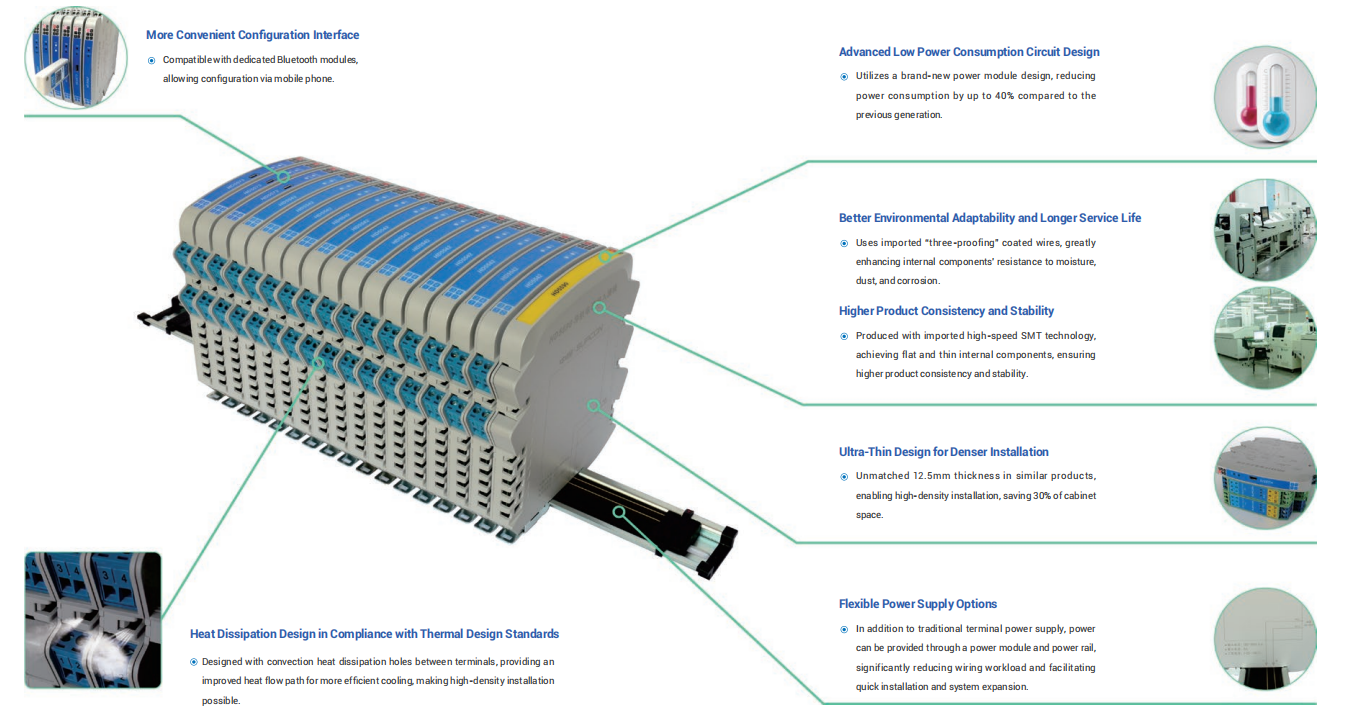

· Ultra-thin 12.5mm design, aligning with modern control requirements for dense installation, saving cabinet space, and improving the integration of devices
· Low power consumption and effective heat dissipation structure design, reducing cabinet temperature rise under dense installation conditions, improving product reliability, and extending service life
· Explosion-proof rating of [Ex ia Ga]IIC, suitable for the most dangerous Zone 0 hazardous areas and dangerous media. It also has the [Ex ia Da] intrinsic safety explosion-proof mark for combustible dust, making it applicable in all explosive dust environments.
