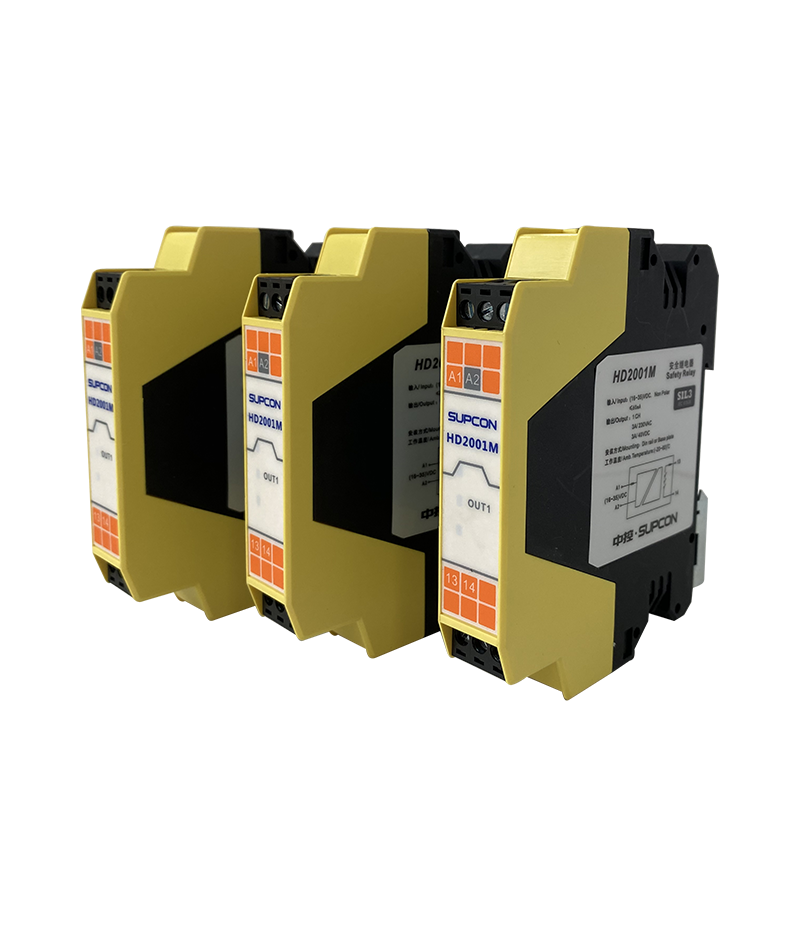

The safety relay is a key component in safety control circuits. It receives safety control signal inputs and outputs relay switch signals that are integrated into the equipment's control loop. The relay supports wide voltage (16-35 VDC) control switch signals and achieves a safe and reliable isolation circuit through technologies such as triple redundancy, automatic protection, and contact welding protection. It supports single or dual-loop operation and is compatible with both rail-mounted and base-mounted installation methods. The product complies with IEC61508 standards, achieving safety integrity level (SIL) 3.
Product Description
· Triple redundancy protection
· Compatible with DIN35 rail and baseplate mounting
· Supports wide voltage control power supply and non-polarity input
· Relay output switch channel with limited capacity protection design
· Compact, space-saving housing
· Supports top port and baseplate control power input
· Plug-and-play terminals with hot-swappable capability for easy installation and maintenance
· Multiple options available, including normally open (NO), normally closed (NC), and a combination of NO and NC contacts
Functional safety This model has been assessed for use in a SIL 3 safety function according to IEC 61508. Contact us to find the safety manual for reference if needed. HD2001/HD2001M λD =27.275， λDD =23.000， λDU =4.275 λS =208.547， DC=84.3%， SFF=98.2% PFD=1.50x10 -4， PFH=4.27x10 -9，（HFT= 0 ） tCE=5513.55，TP=8 years HD2002 λD =54.550， λDD =46.000， λDU =8.550 λS =417.095， DC=84.3%， SFF=98.2% PFD=3.01x10 -4， PFH=8.55x10 -9，（HFT= 0） tCE=5513.55，TP=8 years HD2001.NC/HD2001.OC λD =27.275， λDD =23.000， λDU =4.275 λS =208.547， DC=84.3%， SFF=98.2% PFD=1.50x10 -4， PFH=4.27x10 -9，（HFT= 0 ） tCE=5513.55，TP=8 years HD2002.OC λD =54.550， λDD =46.000， λDU =8.550 λS =417.095， DC=84.3%， SFF=98.2% PFD=3.01x10 -4， PFH=8.55x10 -9，（HFT= 0） tCE=5513.55，TP=8 years
TECHNICAL PARAMETERS

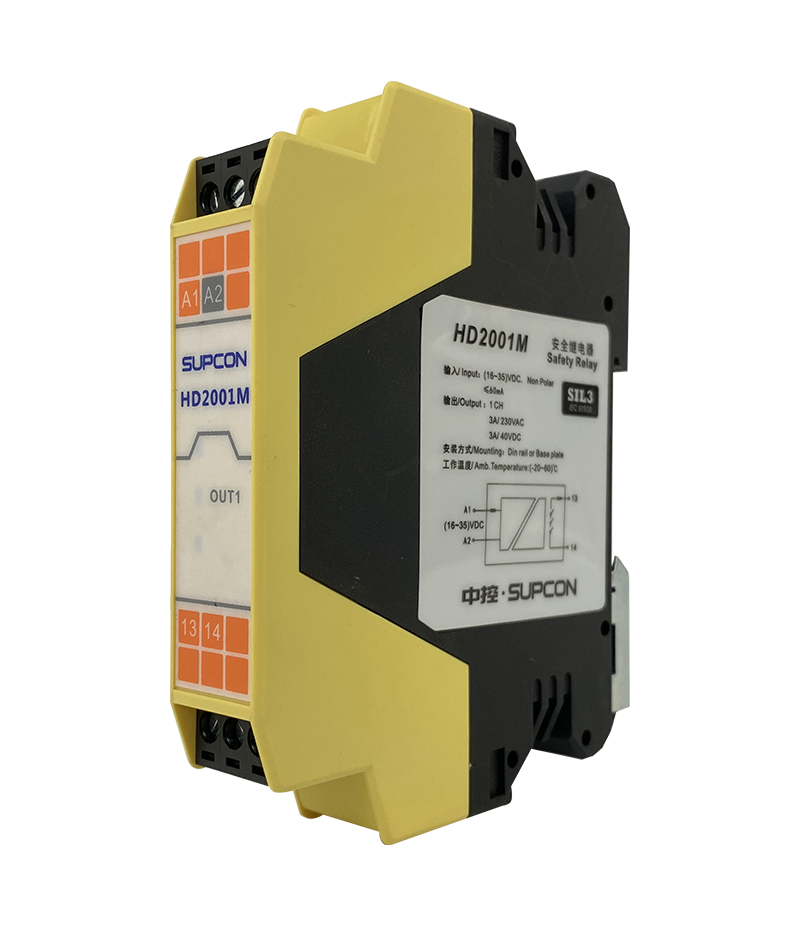

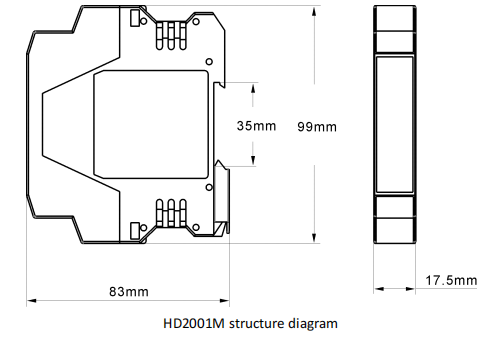

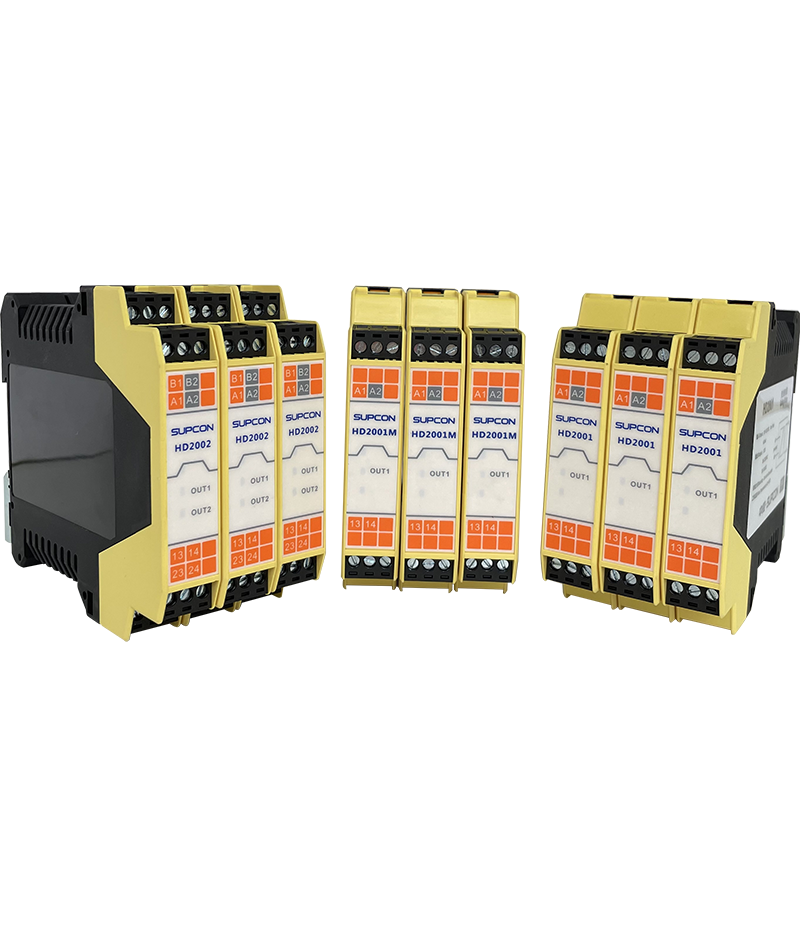

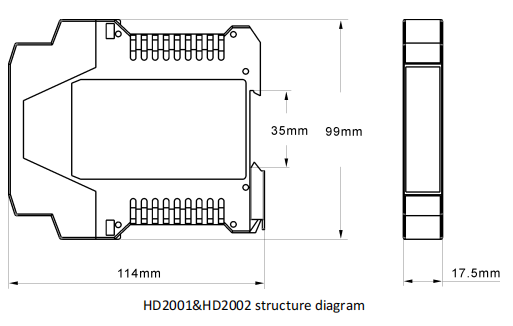

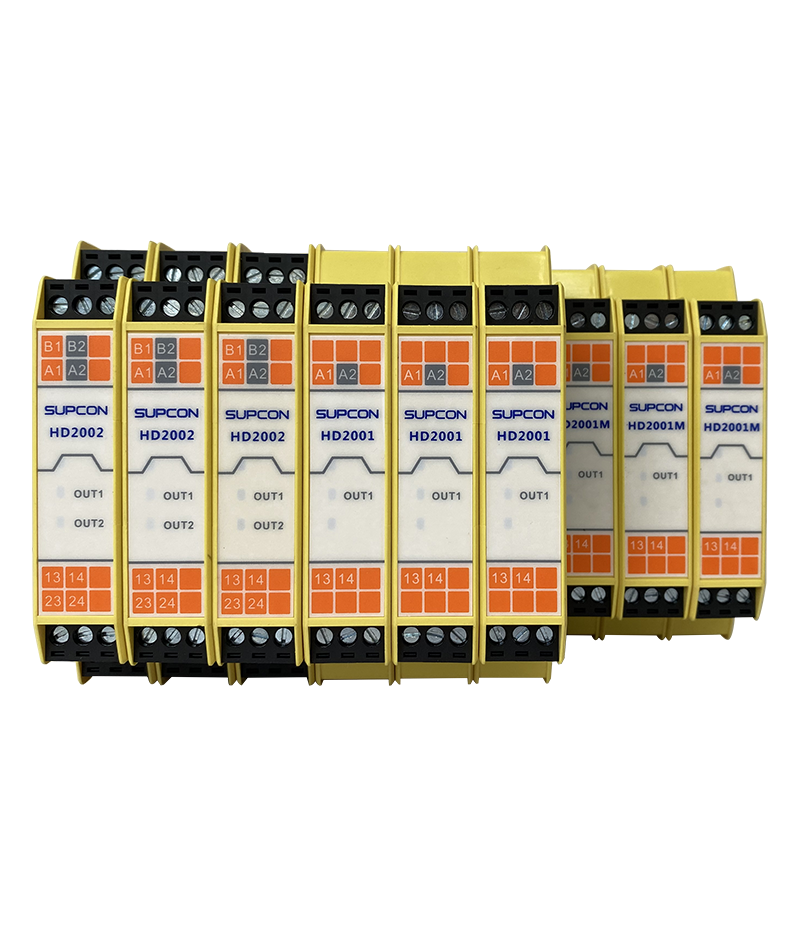

Overall Dimensions
| Model Size Note | ||
| HD2001M | 17.5mm×83mm×99mm | 1NO(Ultra-small) |
| HD2001 | 17.5mm×114mm×99mm | 1NO |
| HD2001.NC | 17.5mm×114mm×99mm | 1NC |
| HD2001.0C | 17.5mm×114mm×99mm | 1NC+1NO |
| HD2002 | 17.5mm×114mm×99mm | 2NO |
| HD2002.0C | 17.5mm×114mm×99mm | 2NO+1NC |
Specification
| ltems Unit Parameter | ||
| Switch channel number | / | 1 or 2 or 3 |
| Voltage of power supply | V | 24VDC |
| Voltage range | V | (16~35)VDC non-polar |
| Means of power supply | / | Upper port or base input |
| LED | / | Green for poweron indictation |
| Current loss | mA | ≤60mA(per channel) |
| Contact point material | / | AgSnO₂ |
| Maximum switch current/voltage | A | 5A/250VAC,5A/30VDC |
| Internal fuse | / | 5A,slow-break |
| Pick-up time | ms | ≤25ms |
| Release time | ms | ≤10ms |
| Filtering time | ms | ≥2ms |
| Rated insulation voltage | V | 250VAC |
| Rated impulse voltage | V | 6000V(1.2/50us) |
| Clearance and Creepage distance | mm | EN60947-1(GB/T14048-1) |
| Electromagnetic compatibility | / | EN61000(GB/T17799) |
| Overvoltage level | / | Ⅲ |
| Pollution degree | / | 2 |
| Protection class | / | IP20 |
| Mechanical endurance | / | More than 107 |
| Working temperature | ℃ | -20℃~60℃ |
| Storage temperature | ℃ | -40C~85℃ |
| Relative humidity | %RH | 10%~90%RH |
| Security certificate | / | SIL3 (HFT=0) |

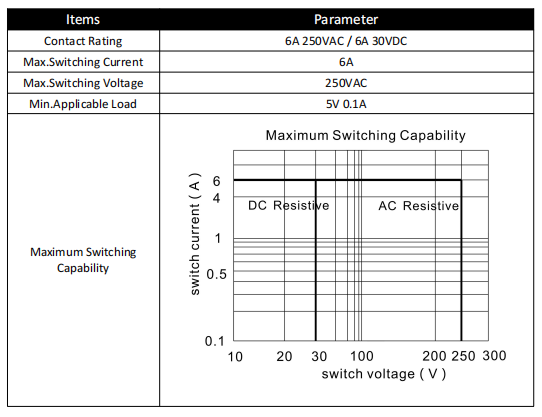

Contact Specification
