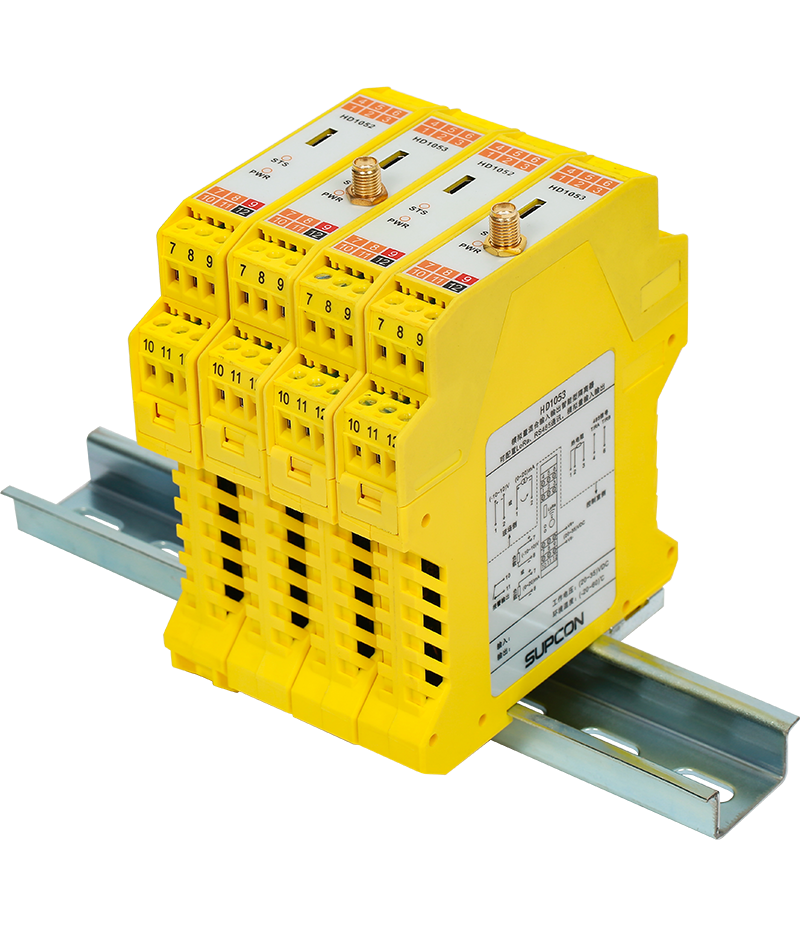

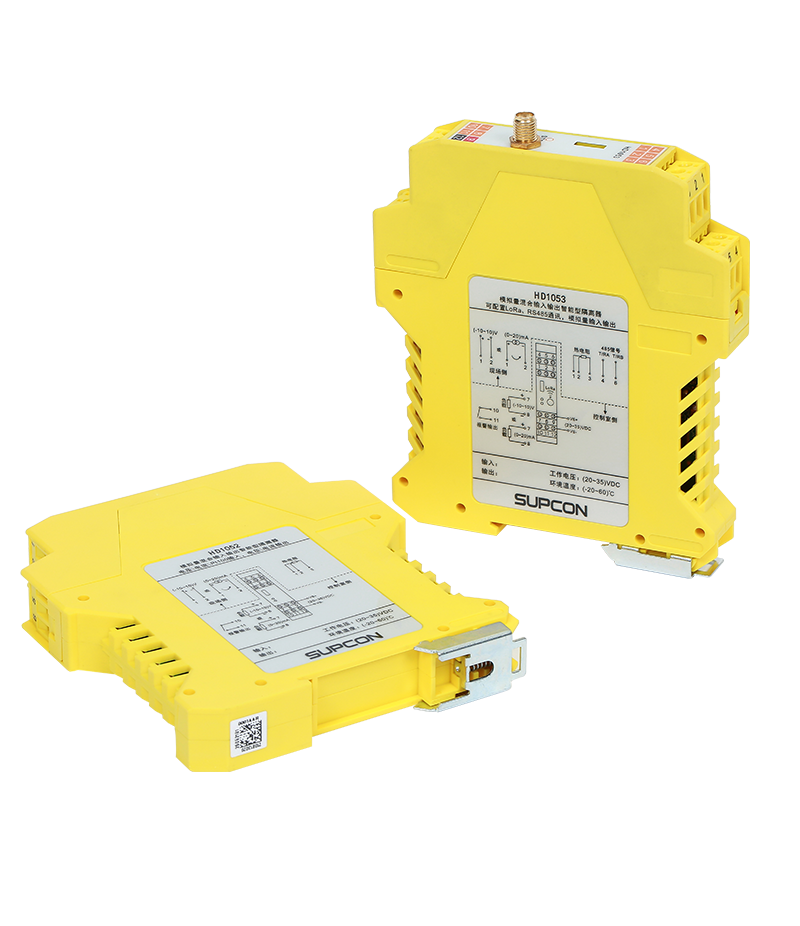

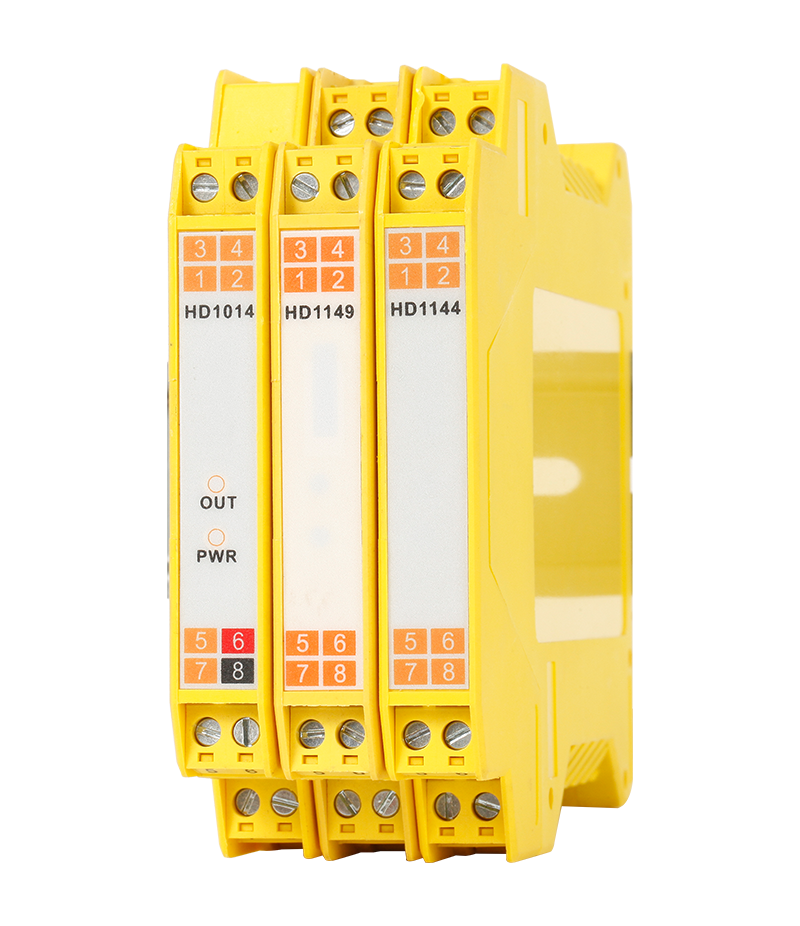

The HD1000 series isolators utilize isolation technologies such as optical, electrical, and magnetic isolation to separately isolate the power supply, input signals, and output signals. This enables isolated signal transmission between field devices and control systems, serving as an isolation interface unit between field devices and control room equipment. The isolation technology electrically isolates input and output signals, significantly enhancing the interference resistance and reliability of electronic systems. More industrial control systems and field devices now employ isolation interface units to replace the older non-isolated units.
The HD1000 series covers various devices, including RTD temperature transmitters, thermocouple temperature transmitters, millivolt transmitters, power distribution units, signal distributors, and intermediate drive relays.
Product Description
Key Features
· No grounding required
· High isolation voltage
· Independent DIN rail installation
· High-density installation
· Isolated fault points
· Plug-and-play terminals
· Supports one input to two outputs
· Three-port isolation between input/output signals and power supply
· High conversion accuracy
· Modular series design
Main Types
· Switch input
· Thermocouple/millivolt signal transmitter output

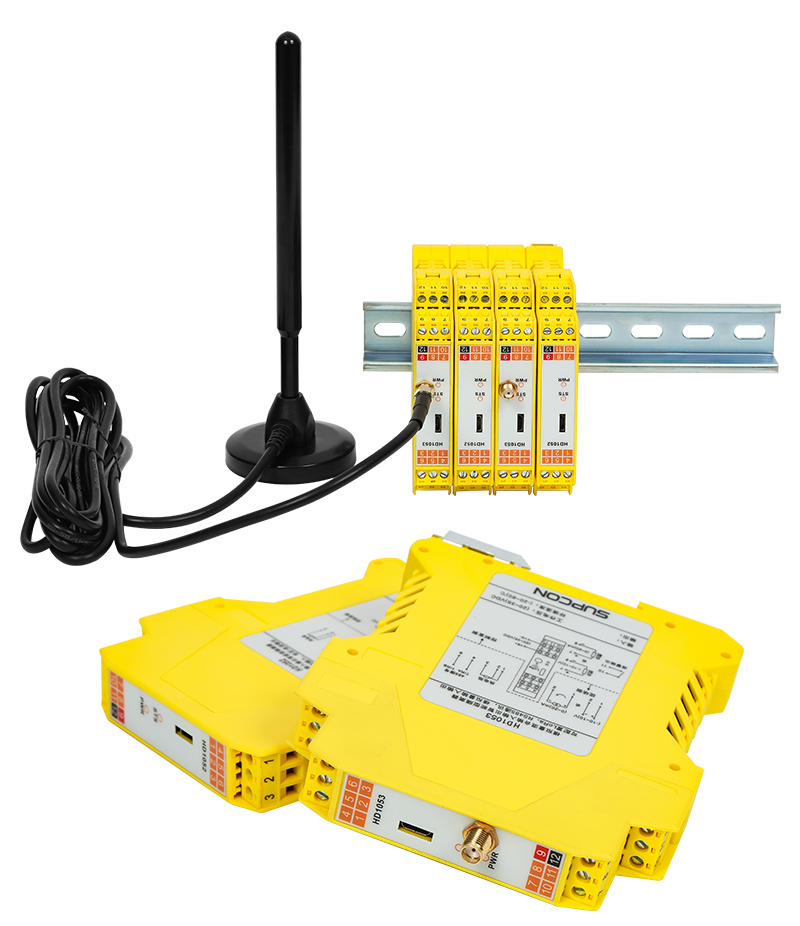

· Universal input/output, wired/wireless transmission types
· Analog output
· RTD/resistance signal transmitter output
· High-voltage input
· Analog input
