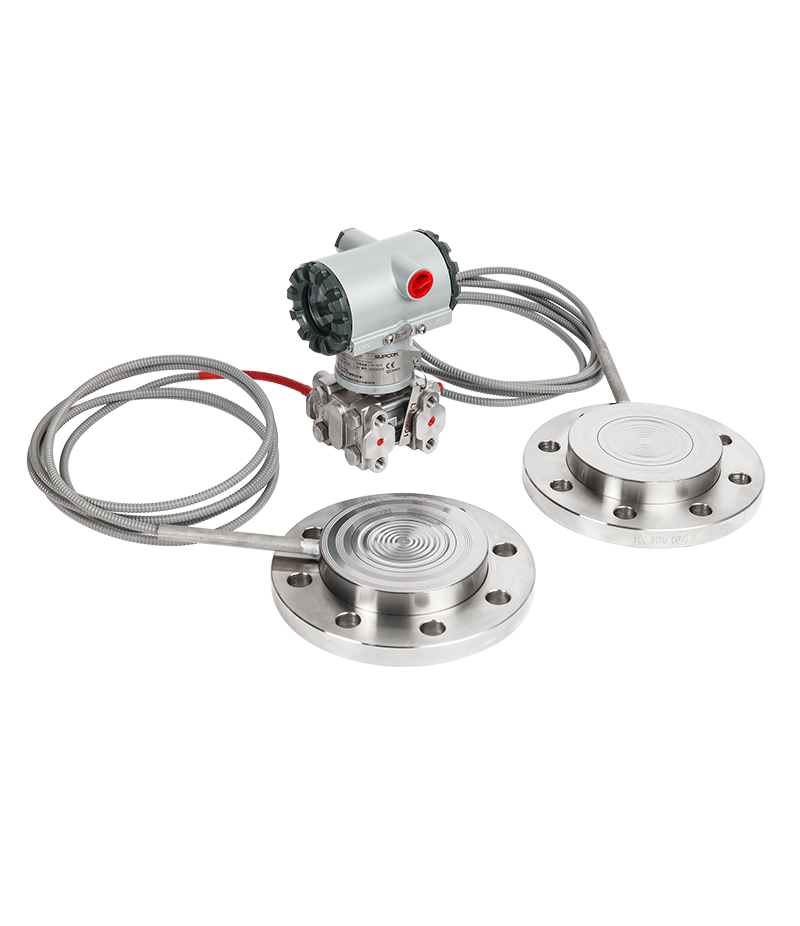

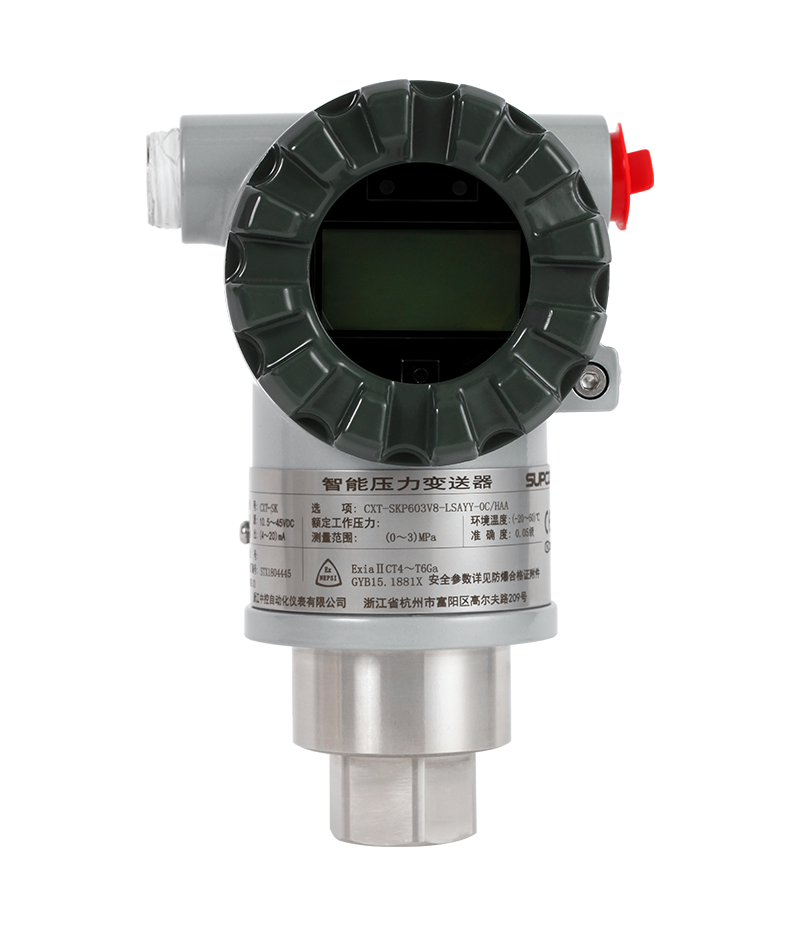

The CXT series high-precision intelligent pressure transmitters utilize a high-performance monocrystalline silicon composite sensor chip, advanced integrated capsule structure, and highly reliable modular circuit design to ensure superior performance and long-term stability.
Product Description
The CXT series high-precision intelligent pressure transmitters utilize a high-performance monocrystalline silicon composite sensor chip, advanced integrated capsule structure, and highly reliable modular circuit design to ensure superior performance and long-term stability. Various corrosion-resistant isolation diaphragms are available to meet the needs of different industries. Through a special structural design, the transmitter operates reliably even under harsh conditions such as high temperature and high vacuum. It supports multiple types of bus communication, including HART, FF, PA, APL, RS485, offering rich protocolcompatibility, making it suitable for various industrial automation and control system integration needs. The CXT series high-precision intelligent pressure transmitters are widely used for pressure, flow, and level measurement in industries such as oil, power, chemical, metallurgy, pharmaceuticals, and light industry.
TECHNICAL PARAMETERS
· Highest Accuracy: ±0.035%
· Protection Rating: IEC IP66/67
· Sensor: Monocrystalline silicon composite pressure sensor
· Suitable for: High-temperature, high-vacuum environments
· Range: 100Pa ~ 70MPa
· Coating: Gold-plated, effectively inhibits hydrogen permeation
· Long-term Stability: Up to ±0.1% / 10 years
· Overload Protection: Integrated overload diaphragm protection design
· Range Ratio: Up to 100:1, maintains accuracy within 10x compression
· Customization: Tailored solutions to meet customer-specific process challenges
· Ethernet – To the Field Products
· Bus Communication: HART, FF, Profibus-PA, RS485, APL
· Explosion-Proof Certification: Certified for national-level electrical and dust explosion-proof standards (intrinsic safety / flameproof / intrinsic safety + flameproof)
· Wireless Communication Protocols: WirelessHART, Zigbee, LoRa, NB-IoT, 5G
· Customizable: Process interfaces, remote devices, flange specifications, fill fluids, and diaphragm types can be tailored to client requirements
