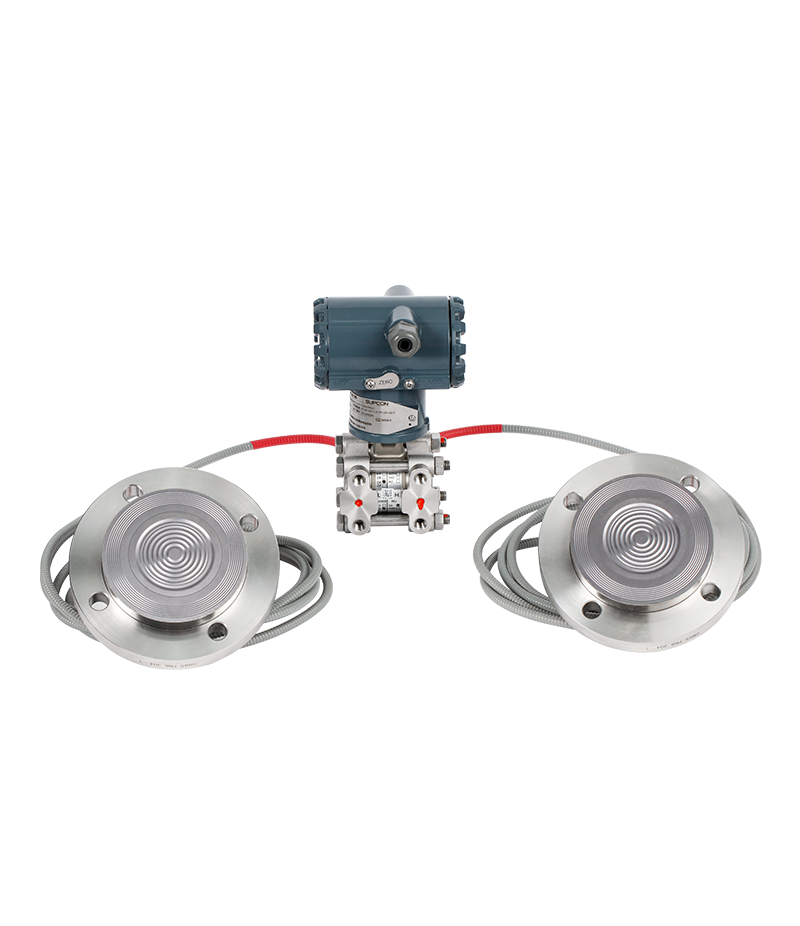

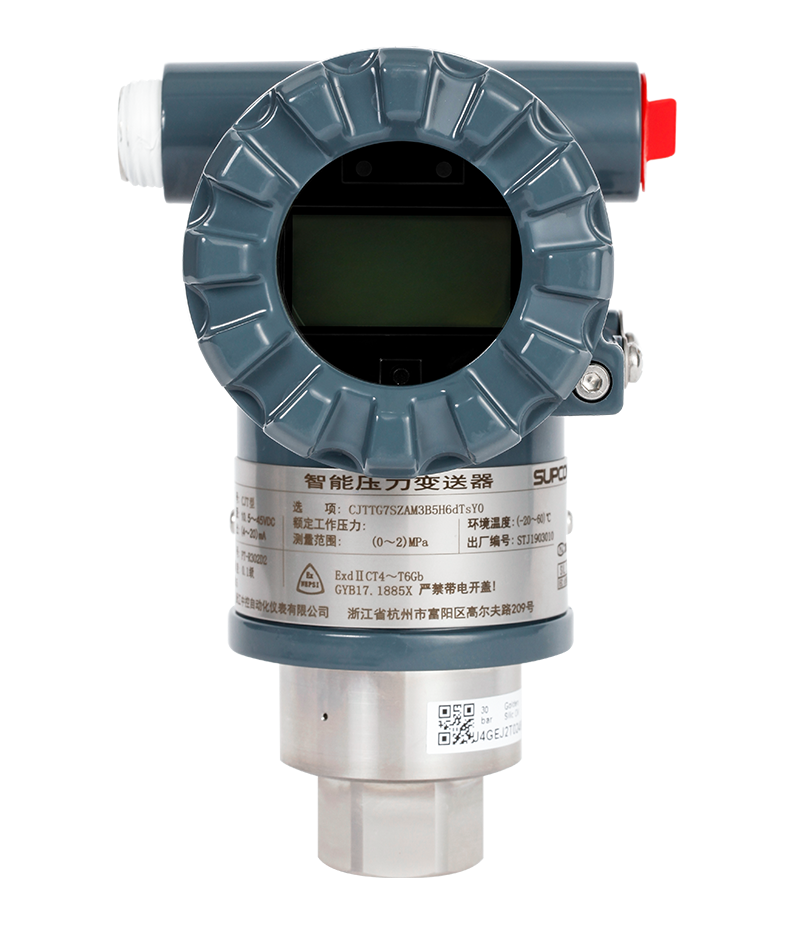

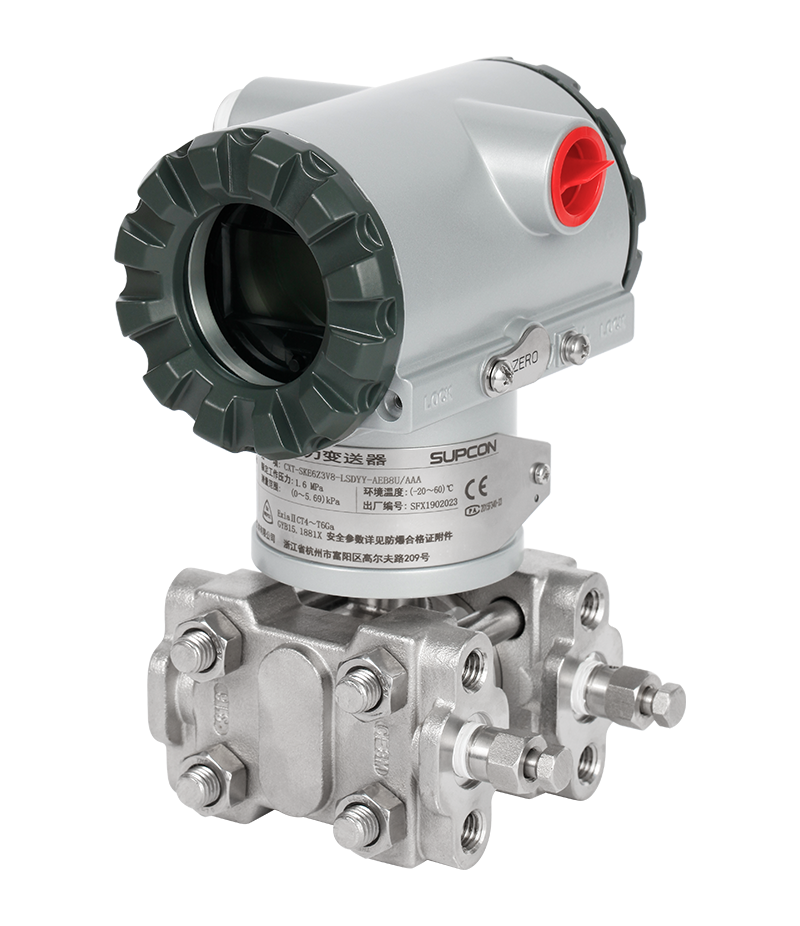

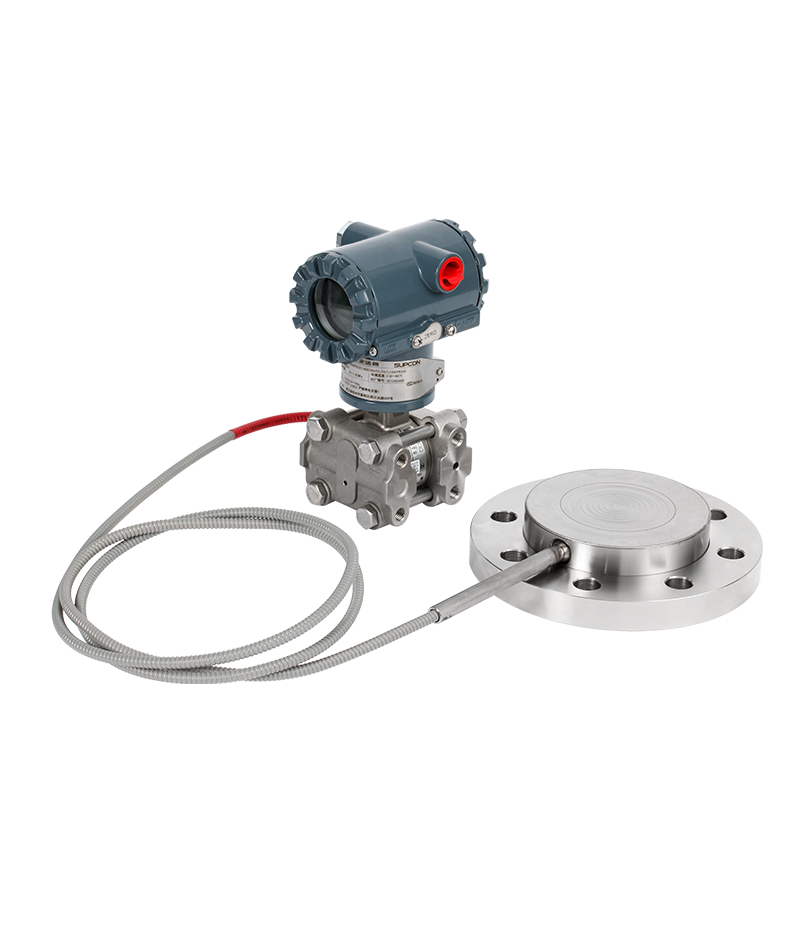

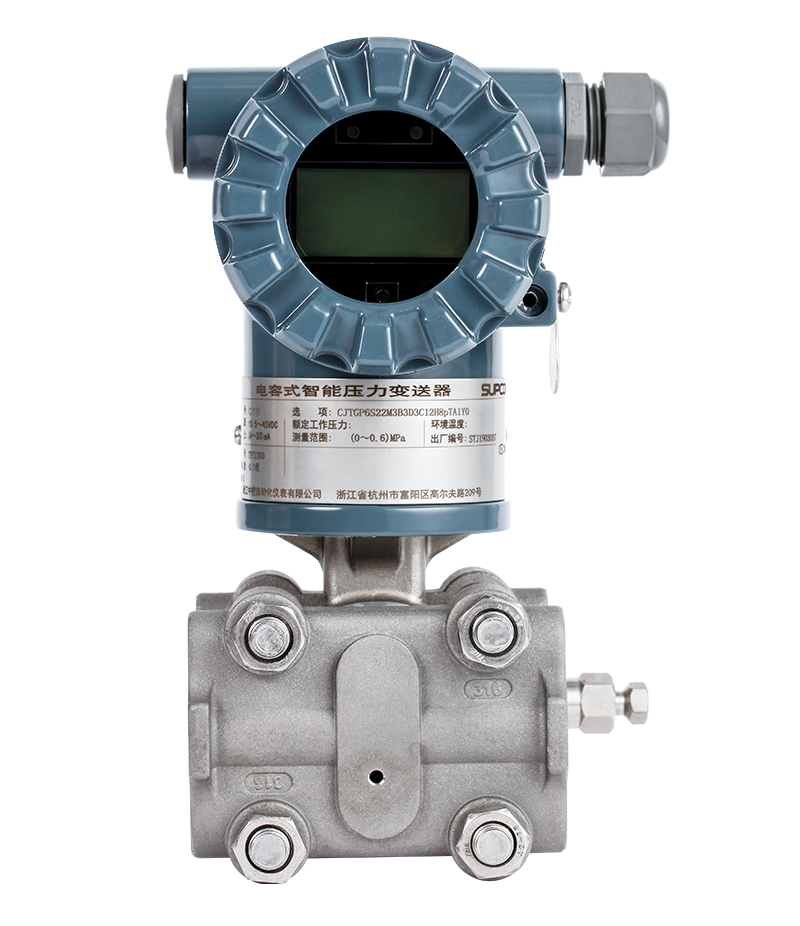

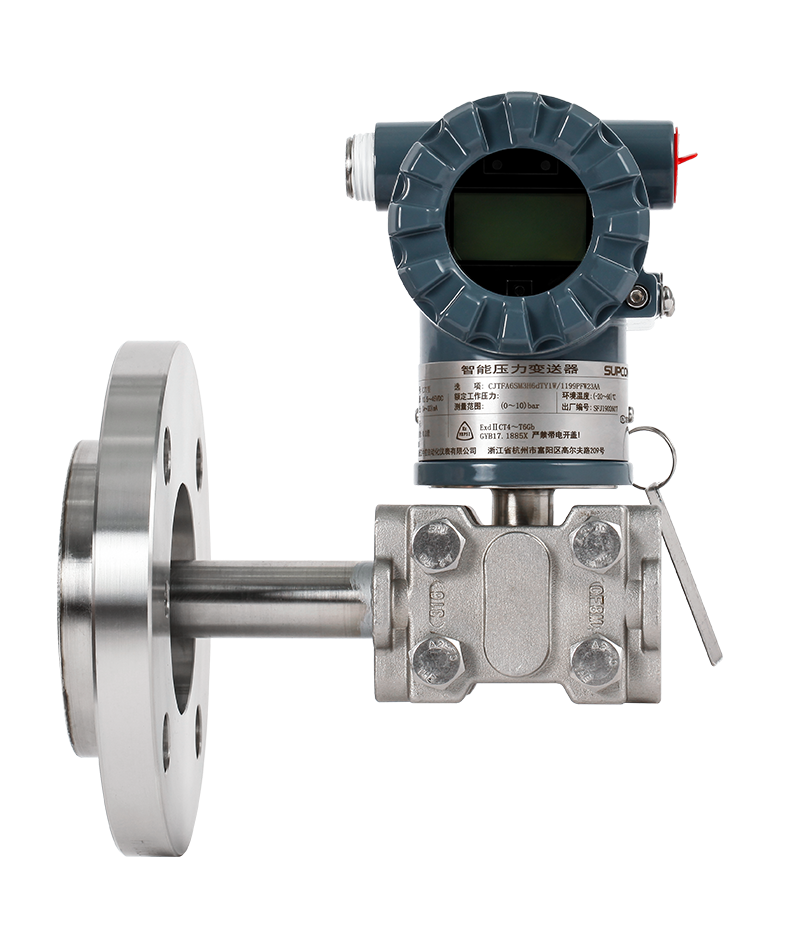

CJT series smart pressure transmitter is a smart pressure (differential pressure) instrument with HART communication function, developed using the micro displacement capacitive sensor technology.Applicable to the pressure, flow and liquid level measurement in petroleum, electric power, chemical industry, metallurgy, pharmacy, light industry and other sectors.
Product Description
Modularized design Accuracy: ± 0.1%
Range ratio: 40: 1
Degree of protection: IEC IP67
Stability: ± 0.1% FS/year
Flameproof: Ex d IIC T4 ~ T6 Gb
Intrinsically safe: Ex ia IIC T4 ~ T6 Ga
Compatible with HART protocol
Built-in parameter debugging menu
Strong resistance to unidirectional overload
Self-diagnostic
Fully digital signal conditioning technology
Applicable in various corrosive media
TECHNICAL PARAMETERS
| 量程代码 | 量程(kPa) | 测量范围(kPa) | 过压极限 (MPa) | ||
| 最小 | 最大 | 下限 | 上限 | ||
| 3 | 2.5 | 7.5 | -7.5 | 7.5 | 7 |
| 4 | 3.74 | 37.4 | -37.4 | 37.4 | 10 |
| 5 | 4.67 | 186.8 | -100 | 186.8 | 10 |
| 6 | 17.24 | 690 | -100 | 690 | 10 |
| 7 | 51.7 | 2068 | -100 | 2068 | 10 |
| 8 | 250 | 10000 | -100 | 10000 | 15 |
| 9 | 500 | 20000 | -100 | 20000 | 60 |
| 0 | 1000 | 40000 | -100 | 40000 | 60 |
