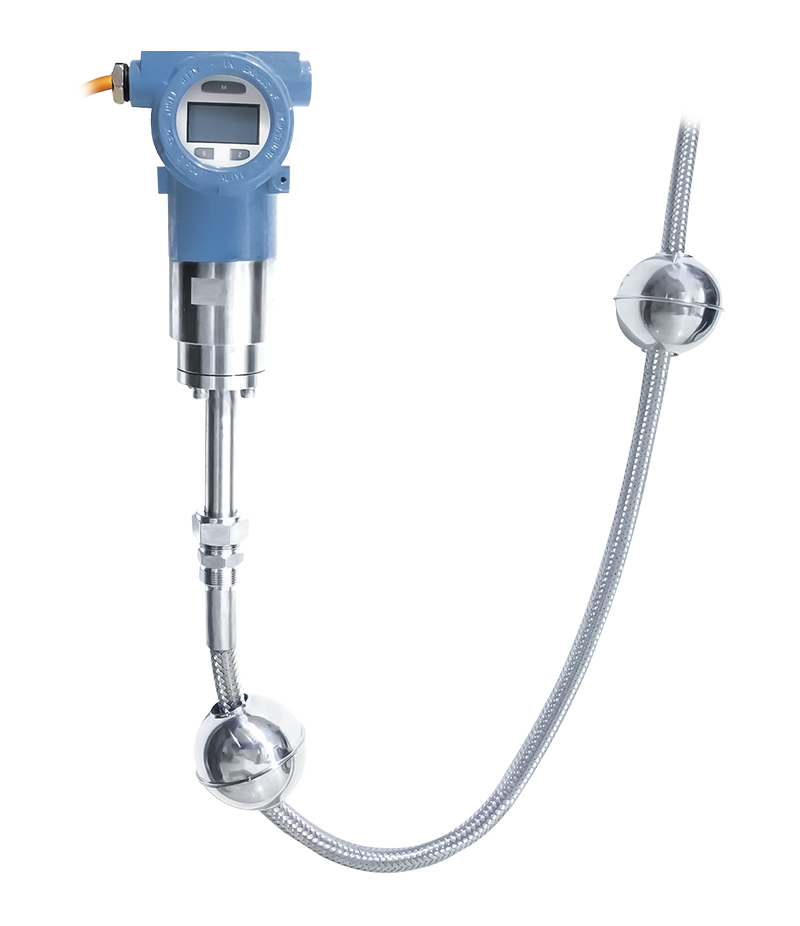

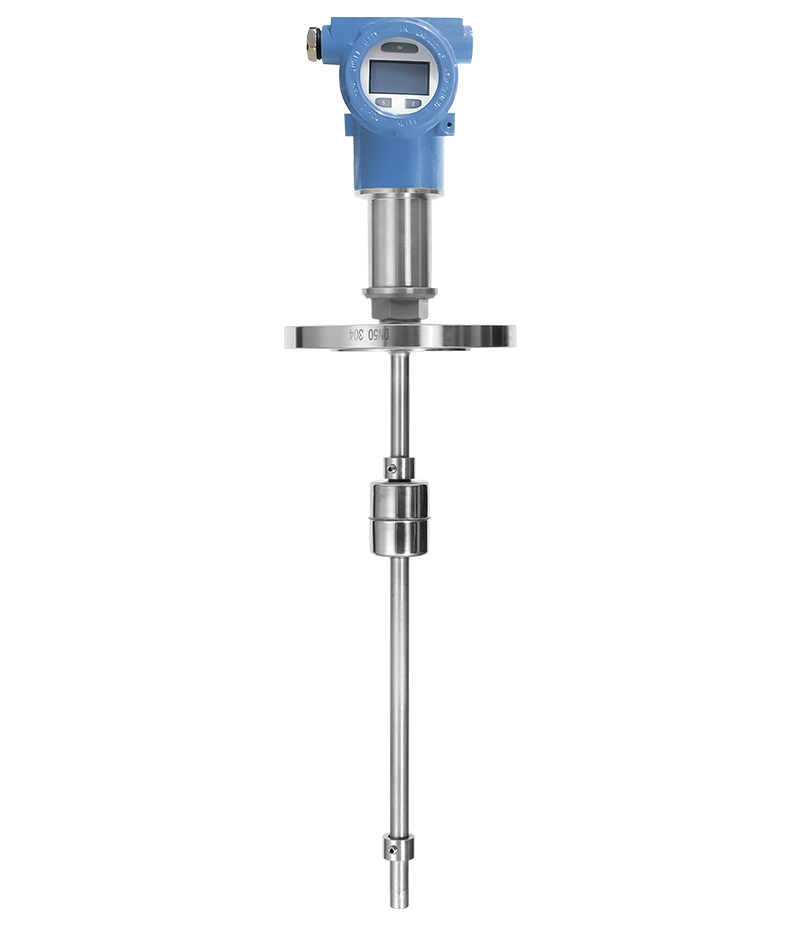

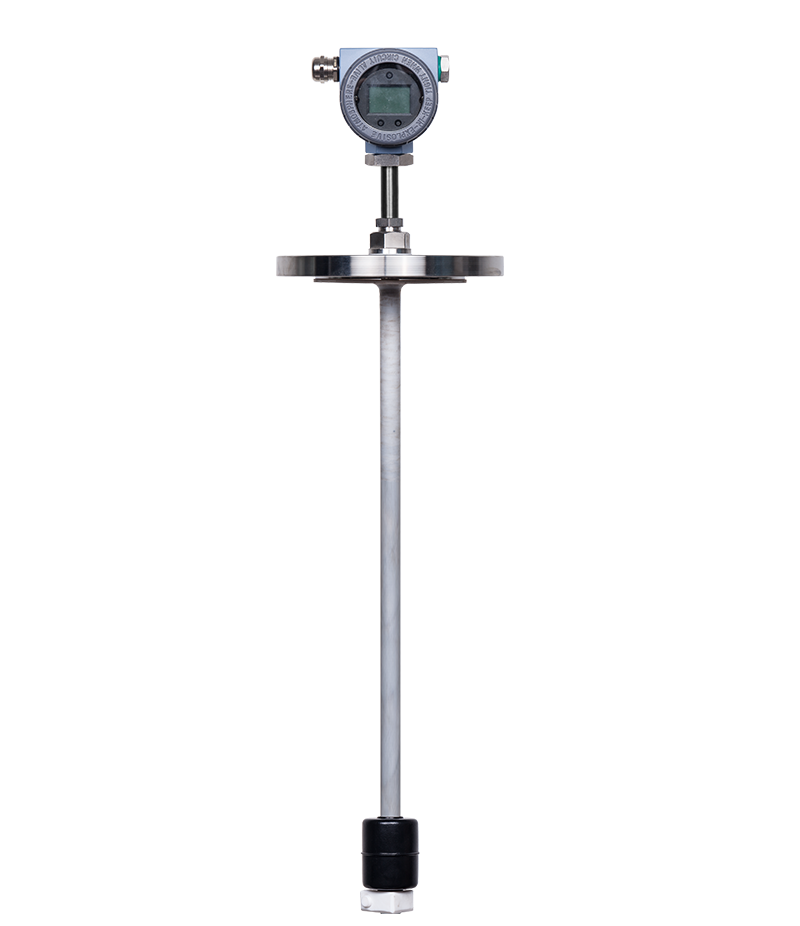

The SL80 magnetostrictive level transmitter is a high-precision product widely used for process-level measurement. Its transducer sends a pulse along a waveguide wire, generating a circular magnetic field on the surface. This field interacts with the magnetic field of the float ball's permanent magnet, which changes the lattice spacing in the waveguide, generating a torsional pulse. By measuring the time difference between the sent and received pulses, the exact liquid level can be determined and converted into an electrical signal for remote control. This product’s accuracy is unaffected by dielectric constant, temperature, or pressure variations, ensuring high precision and low maintenance.
Product Description
Key Features
· Non-contact liquid level sensor, ensuring no wear and tear over time
· No need for frequent calibration and no regular maintenance required
· Capable of providing multiple position and temperature outputs
· High resolution, high accuracy, stable, reliable, and fast response
· Supports multiple output modes, including voltage, current, and RS485
Applications
· Oil tank level measurement
· Chemical process level control
· Drinking water and wastewater treatment
· Industrial site level measurement and control
· Turbine guide vane opening detection and control
· Dam water level monitoring
· Pharmaceutical tank level control
· Food and beverage tank control
· Turbine air resistance valve opening detection and control

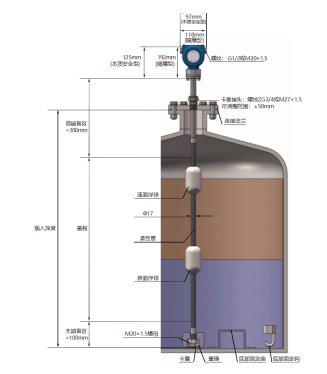

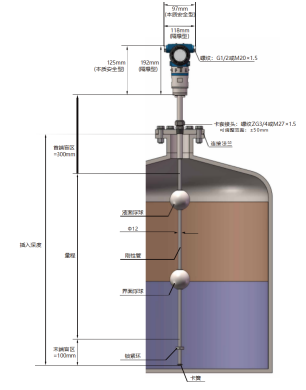

TECHNICAL PARAMETERS
参数 | 指标 |
输出形式 | 二线制(4~20)mA+FSK Modbus |
输出参量 | 液面、界面、温度 |
有效量程 | 硬杆:(50~6000)mm;柔性杆:(1000~23000)mm |
测点个数 | 1个、2个1~3个 |
分辨率 | 16位D/A最高可达0.1mm |
非线性误差 | ≤±0.05% |
回差 | ≤±0.01% |
重复精度 | ≤±0.01% |
示值误差 | ≤±0.5% |
温度性能 | ≤100ppm/℃ |
响应时间 | 200ms 20ms |
工作电压 | 额定工作电压:DC24V;正常工作电压:DC(10~28)V |
工作电流 | <25mA(随量程大小变化)<70mA(随量程大小变化) |
负载特性 | 电源供电DC24V,电流输出时最大负载5000 |
防护等级 | IP67 |
测量盲区 | 上盲区≤100mm;下盲区≤100mm |
温度 | 环境温度:(-30~70)℃;介质温度:(-30~70)℃ |
电子仓材质 | 不锈钢304、316L |
介质密度 | ≥500kg/m³ |
测杆材质 | 不锈钢304、316、哈氏合金、聚四氟乙烯 |
承压特性 | ≤2.5MPa |
过程接口 | M27x1.5、G3/4、ZG3/4 |
电气接口 | 2个M20*1.5、G1/2 |
