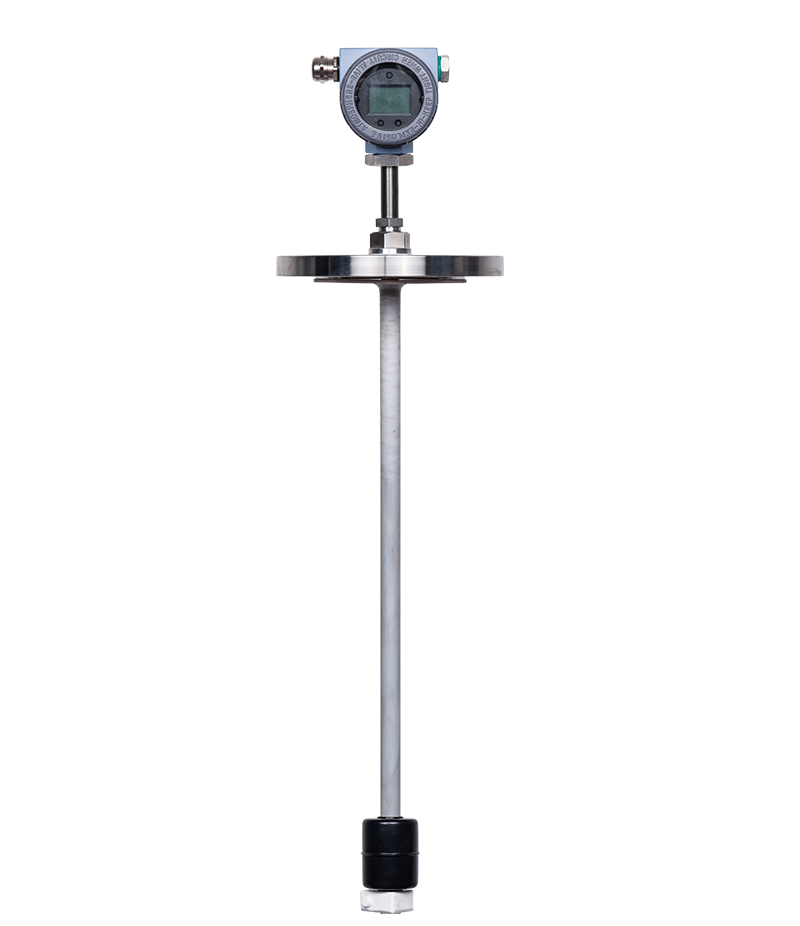

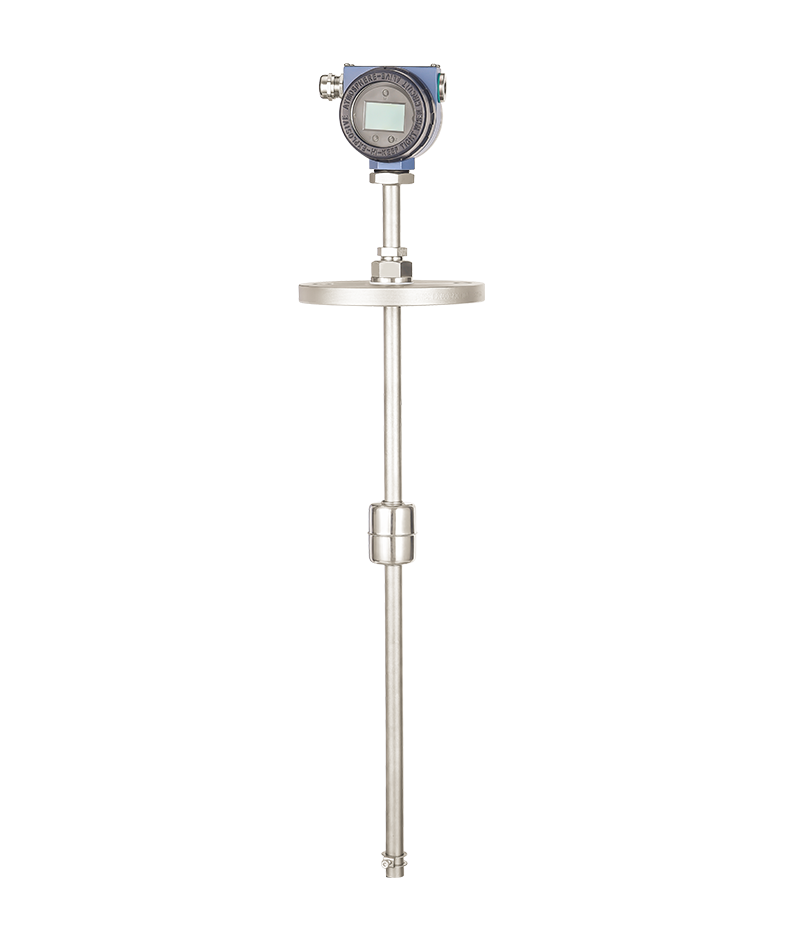

SL20 Float Level Transmitter

The SL20 float level transmitter comes in two types: the float level transmitter and the float level controller. The float level transmitter displays measurements on-site and converts level changes into a (4~20)mA standard signal output, powered by a 24VDC two-wire system. It is suitable for industries such as petroleum, chemical, metallurgy, and environmental protection, providing real-time online measurement and control.


Product Description

· Simple structure and easy installation

· Safe and reliable operation, with high stability

· Wide selection of wetted materials, suitable for corrosive environments

· One set of normally open/normally closed passive contacts for level alarms or control

· Wide voltage supply: DC (15-35)V

· Optional (4-20)mA output or switch output

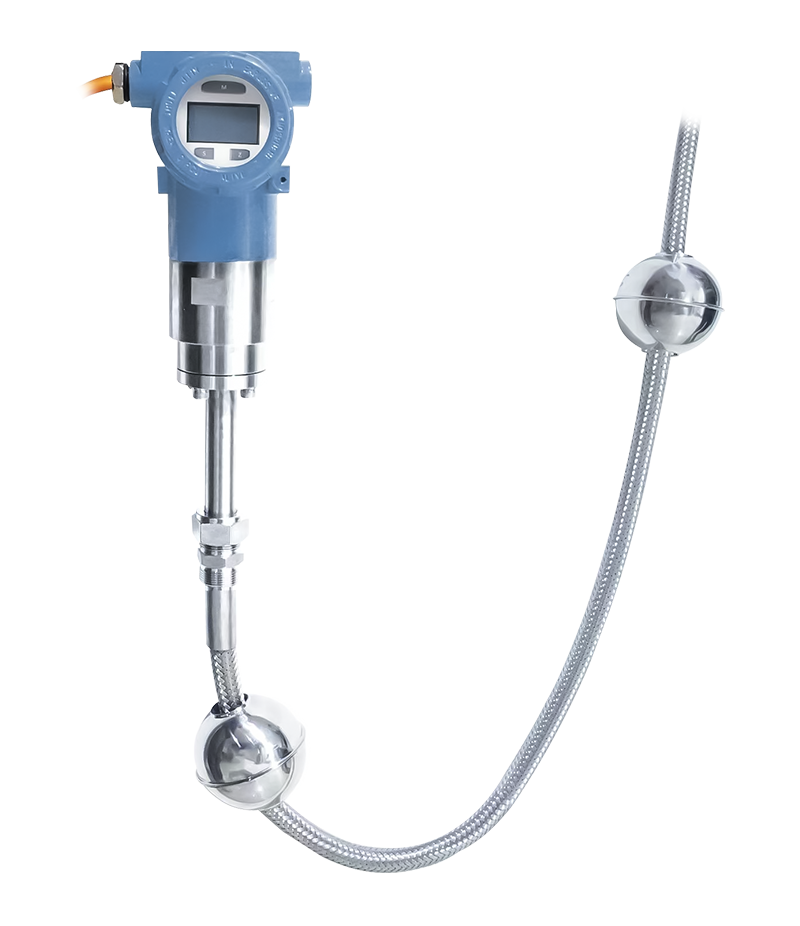

· Versatile installation: side-mounted strap type, top-mounted insert type, cable type

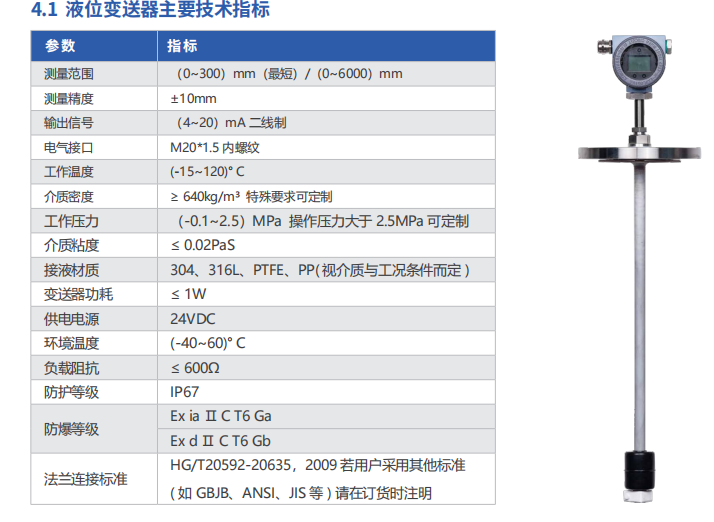

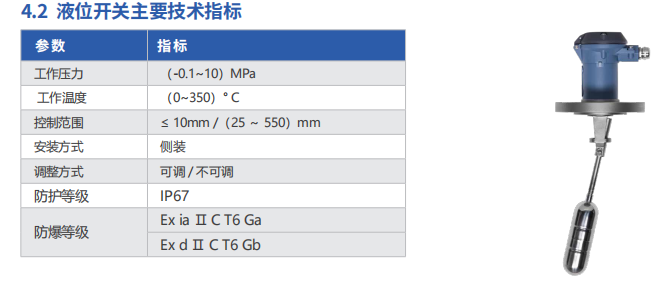

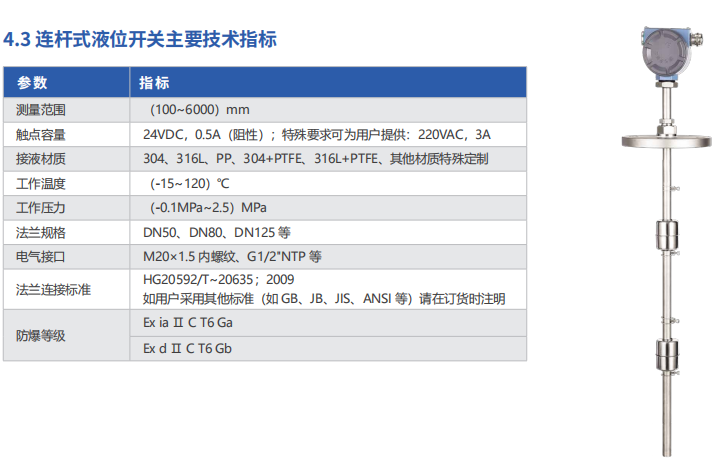

TECHNICAL PARAMETERS
