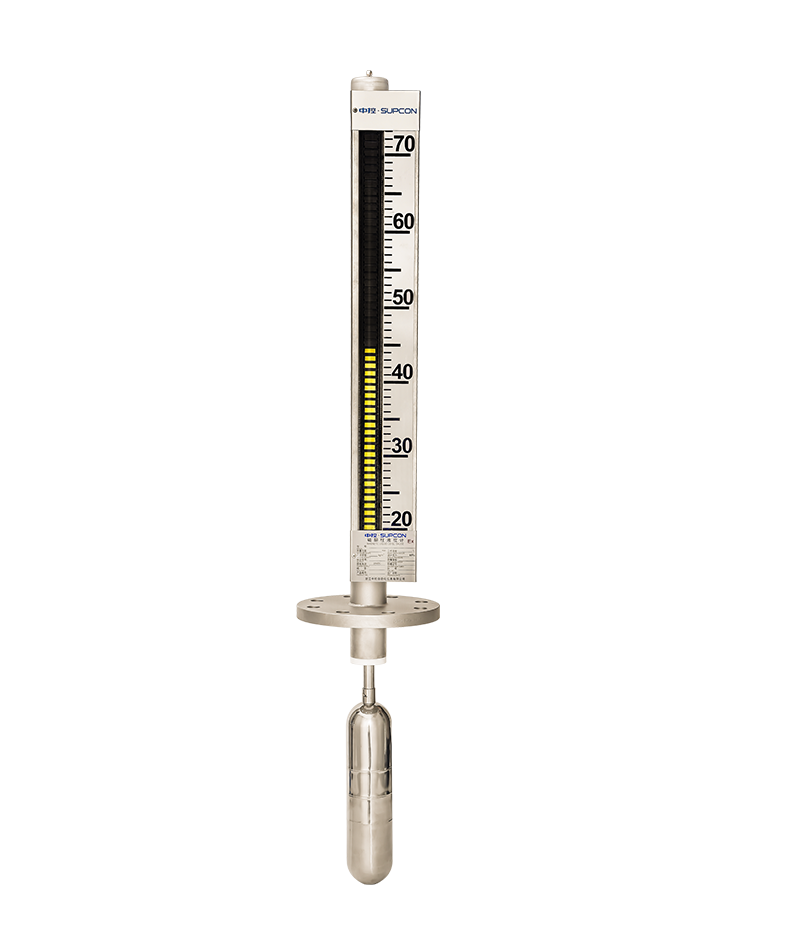

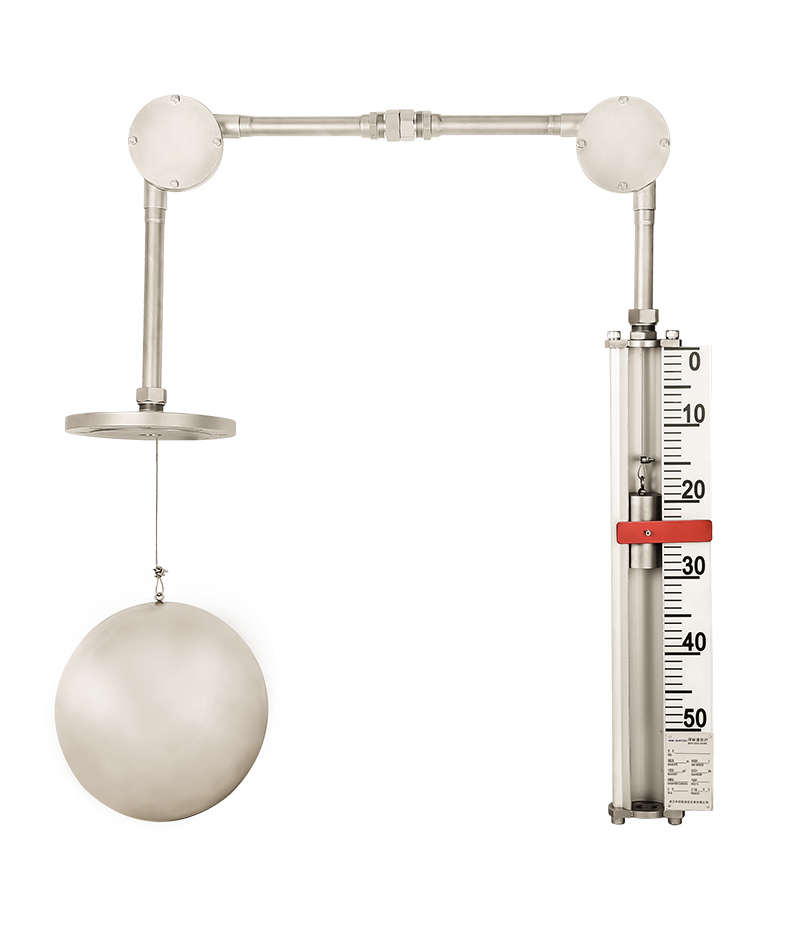

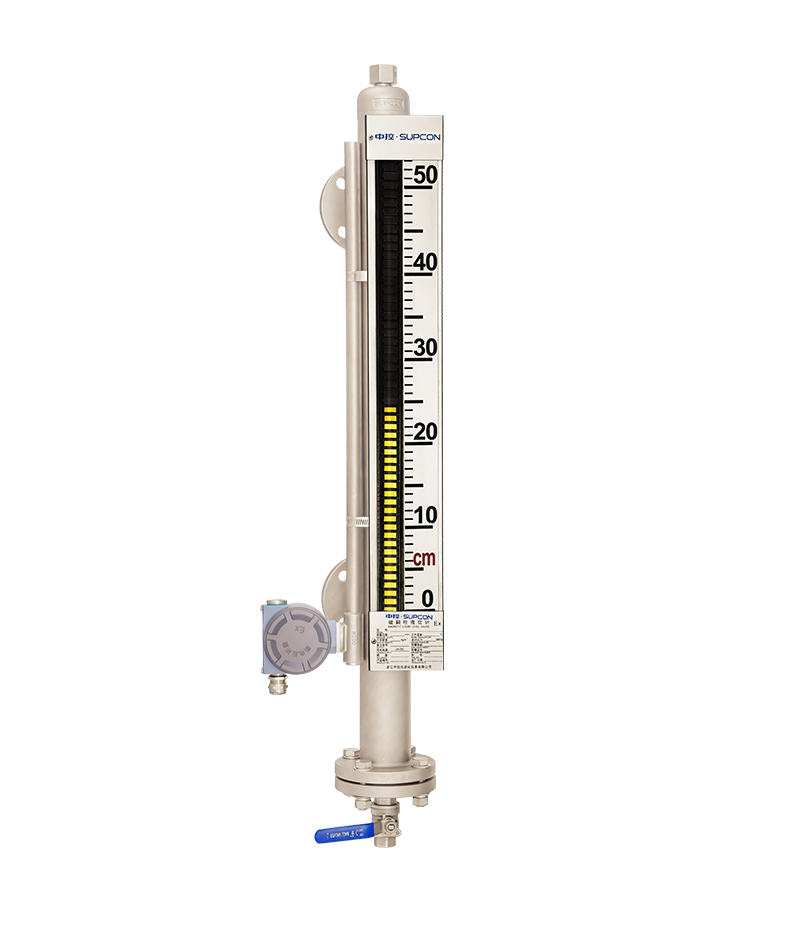

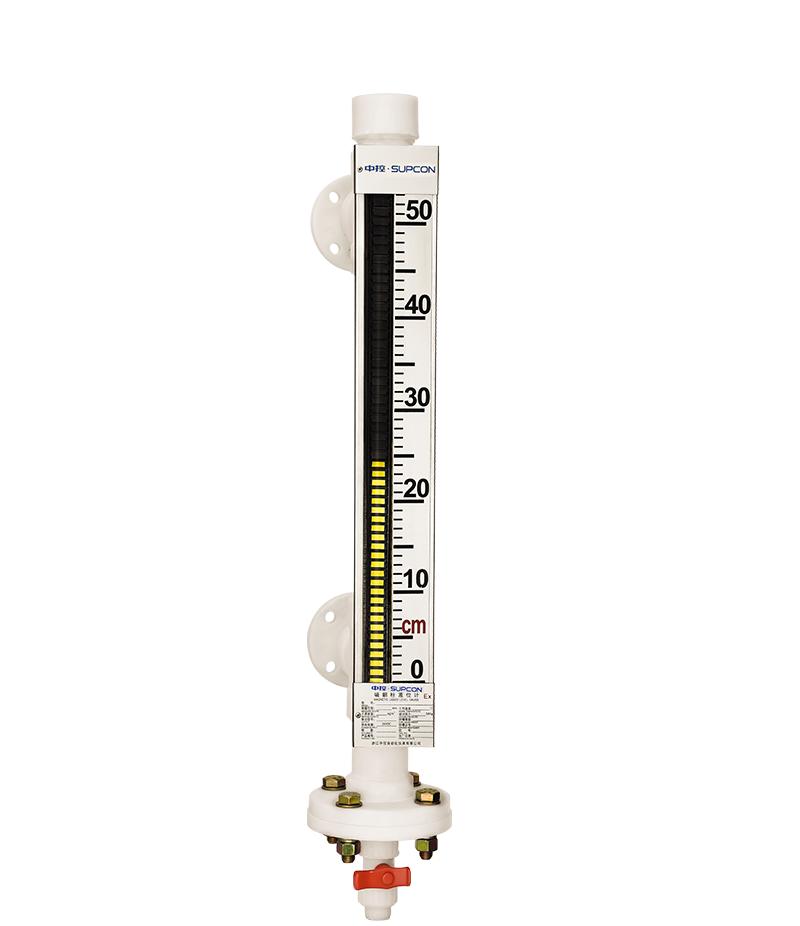

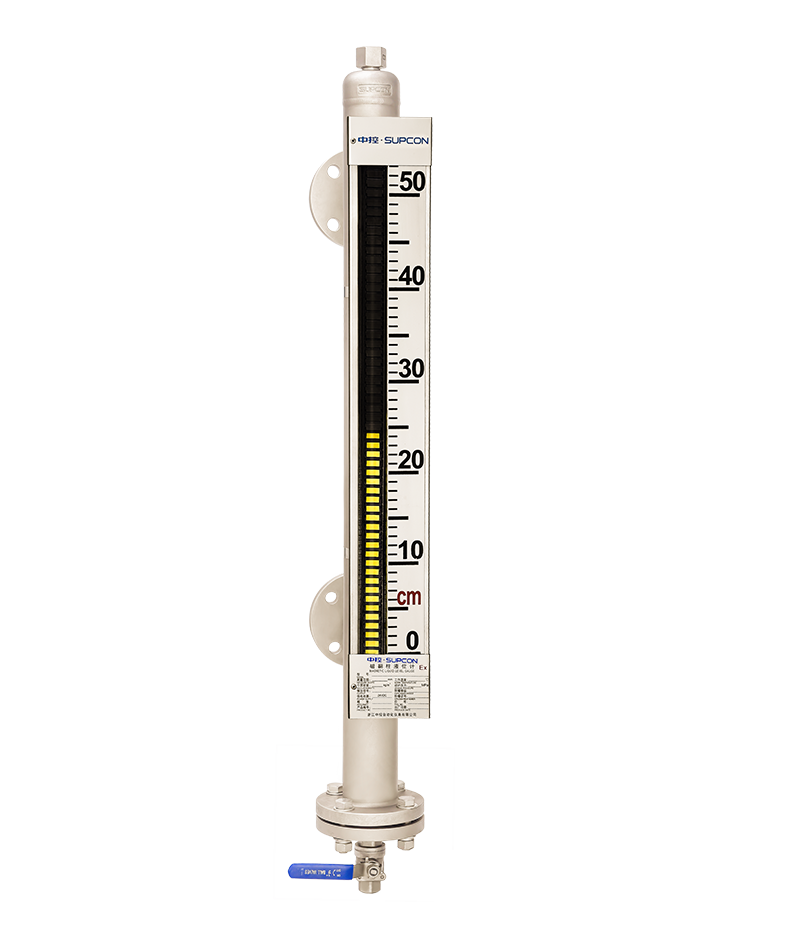

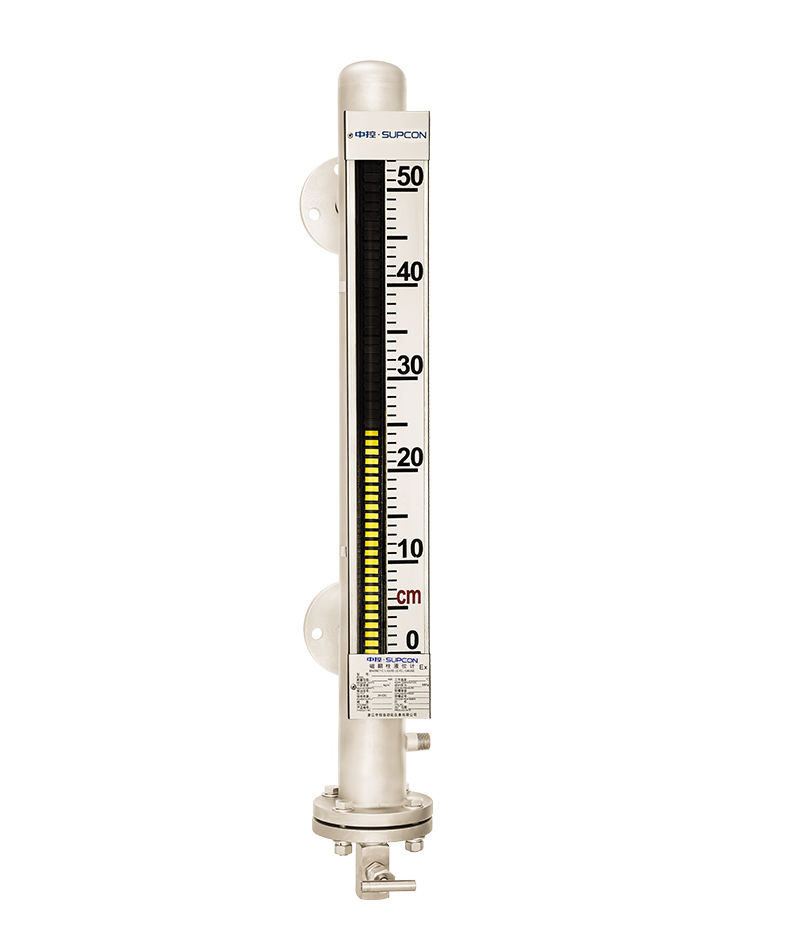

SL10 Magnetic Level Gauge can be used to detect the liquid level and boundary position of various tower, tank, spherical vessel and boiler, which makes up for the shortcomings of glass plate (tube) type liquid level meter like unclear indication and easy to break.It is not affected by temperature change, and there is no blind area in the whole process. The display is eye-catching, the reading is intuitive and the measuring range is large. It can not only display on the spot, but also remote output and control alarm, widely used in electric power, petrochemical, metallurgy, environmental protection, shipping, food and other industries in the production process of liquid level measurement and control.
Product Description
· Simple structure, intuitive and clear observation, minimal maintenance
· Large measurement range, multiple connection methods, not limited by tank height
· Excellent sealing and high reliability, capable of measuring corrosive liquid levels
· Comprehensive detection: can measure liquid levels, interface levels, and provide on-site indication, with options for remote transmitters and level switches
TECHNICAL PARAMETERS
| Measurement Range | (300~6000)mm | Medium Density | ≥450kg/m³ |
| Power Supply | DC(12~36)V | Density Difference | ≥100kg/m³ |
| Output Signal | (4~20)mA | Explosion-Proof Rating | ExdⅡCT2~T6 Gb |
| Operating Pressure | (0~10)MPa | Protection Rating | IP65 |
| Measurement Accuracy | ±10mm | Medium Viscosity | ≤150cP |
| Ambient Temperature | (-40~60)℃ | Wetted Materials | 304,316L,PP,PVC,PTFE |
| OperatingTemperature | (-40~350)℃ | ||
| Process Connection | Customizable to customer requirements | ||
