Flow control valves are essential components in industrial applications, helping regulate fluid flow and pressure. Among these, globe control valves stand out for their precision in controlling flow rates, making them widely used in industries like oil, gas, and chemical processing. In this article, we will explore three main types of globe control valves: Single Seat Globe Control Valve, Cage Guided Globe Control Valve, and Three-way Globe Control Valve, discussing their unique features and applications.

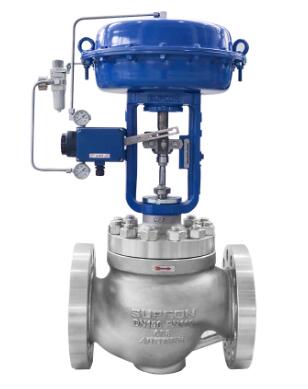

Single Seat Globe Control Valve

The single seat globe control valve is a straightforward yet effective flow control valve known for its simplicity and high level of accuracy. This type of valve has one plug and seat, which means it provides tight shutoff and minimal leakage. The single-seat design also ensures a smooth, linear flow characteristic, making it suitable for applications where precision is crucial, such as in chemical plants and water treatment facilities.

However, the single seat globe valve has limitations in handling higher pressure differentials. Due to the single seat design, it may require more force to operate, particularly in applications with high flow rates or large pressure drops. Despite this, its reliability in smaller systems and its ability to maintain tight shutoff make it a popular choice in many industries.

Cage Guided Globe Control Valve

The cage guided globe control valve features a more robust design compared to the single seat valve. In this type, the valve plug is guided by a cage, which helps manage flow and reduce vibrations, resulting in a more stable operation. The cage design also provides better flow control by allowing different flow characteristics to be achieved through various cage designs.

Cage guided valves are often used in high-pressure applications because they can handle larger pressure drops without compromising on control accuracy. Their versatility makes them suitable for critical applications such as steam control, oil refining, and gas pipelines. The cage design not only enhances durability but also reduces noise and vibration during operation, making it a preferred choice in demanding environments.

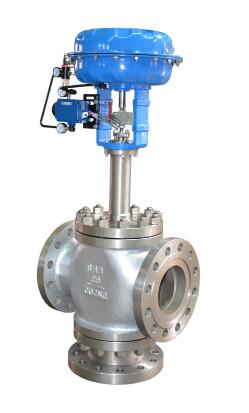

Three-way Globe Control Valve

The three-way globe control valve is designed for applications that require mixing or diverting flows. It features three ports, allowing it to either mix two different flow streams or divert one flow stream into two different directions. This versatility makes it ideal for applications in heating and cooling systems, where it can regulate the flow of hot and cold fluids to maintain precise temperature control.

Three-way globe valves are commonly used in HVAC systems, power plants, and industrial process systems. Their ability to control multiple flow paths with a single valve reduces the need for additional components, leading to simplified piping arrangements and reduced costs. Despite their complexity, they offer efficient and reliable flow control in systems requiring intricate fluid management.

Conclusion

Globe control valves are essential for maintaining precise flow control in a wide range of industries. Whether you need a simple single seat valve for smaller applications, a robust cage guided valve for high-pressure systems, or a versatile three-way valve for mixing and diverting, there is a globe valve to meet your needs. For more information about choosing the right globe control valve, contact us today to find a reliable supplier that offers high-quality flow control solutions.
