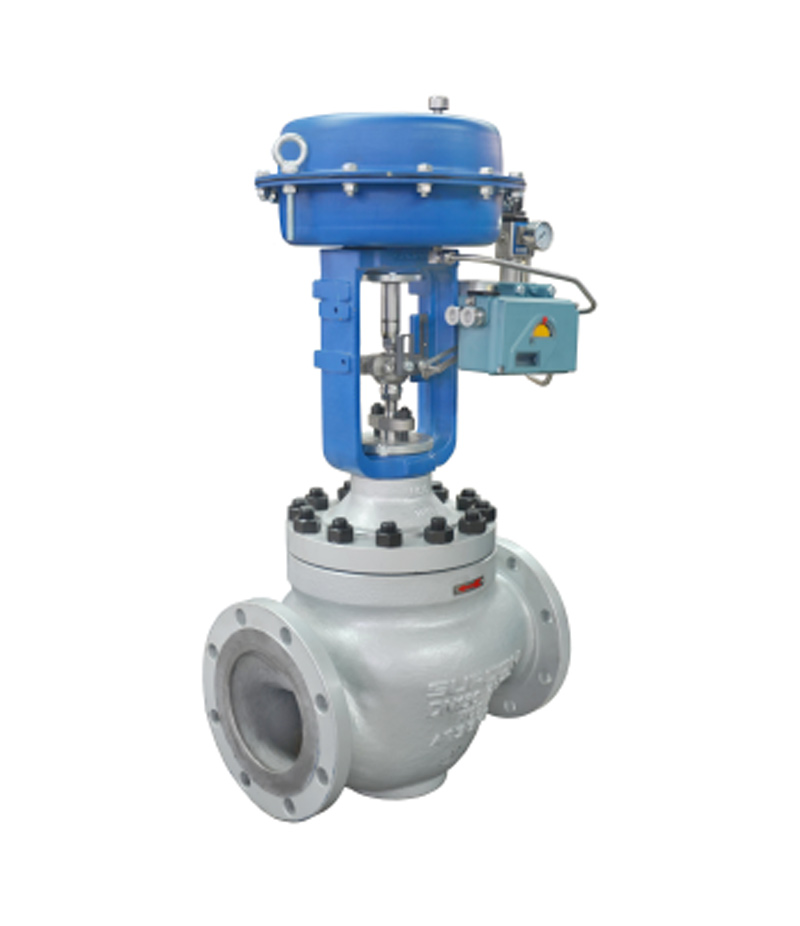

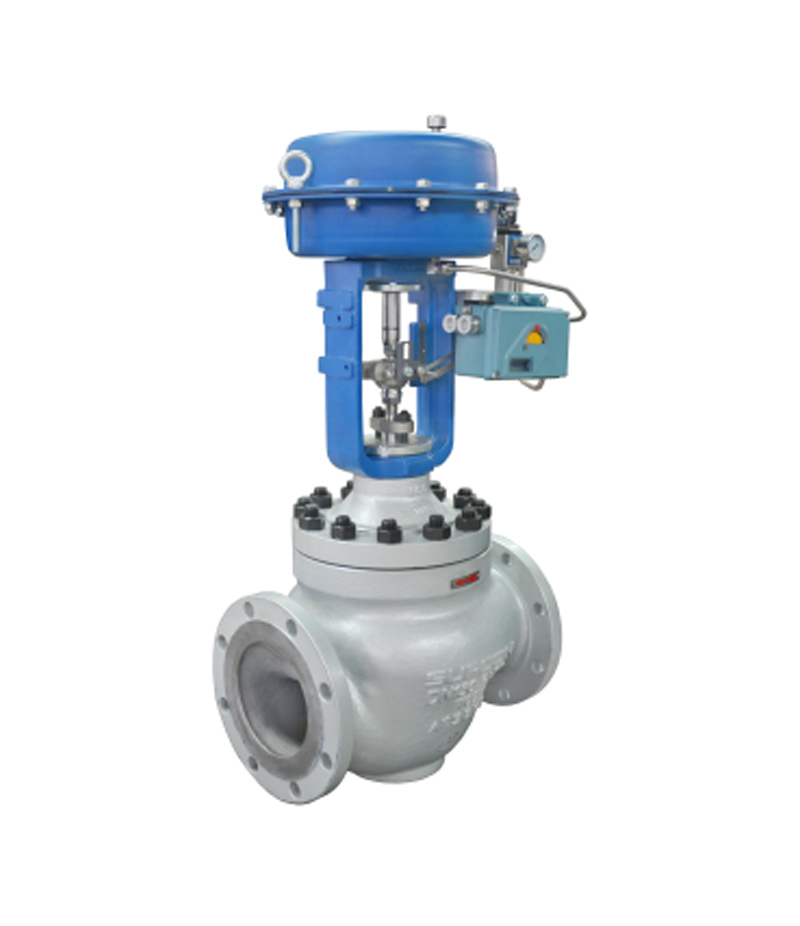

LN8500 is LN8 series pressure balance single-seat valve products, one of the three basic has separable sleeve, large guide structure, adopt the molding spring, energy storage pressure balance ring. Has a good dynamic stability, high control precision, allow the pressure difference is big, the operating force is small, large flow capacity, suitable for a wider temperature range of conditions, large pressure difference, under the action of alternating stress control.
TECHNICAL PARAMETERS
| Nominal Size | DN40 ~ DN400 |
| Pressure Rating | PN16/25/40/63/100;CL150(PN20)/300(PN50)/600(PN110) |
| Operateing Temperature | -80℃~ 260℃ |
| Characteristics | Equal percentage, linear, quickly open |
| Rangeability | 50:1 |
| Seat Leakage Class | ANSI B16.104: IV、V、VI |
| Body Material | WCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc. |
| Trim Material | 630/316/316+ST/316nitriding/316+Ni60/316+WC etc. |
| Seal Material | PTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc. |
