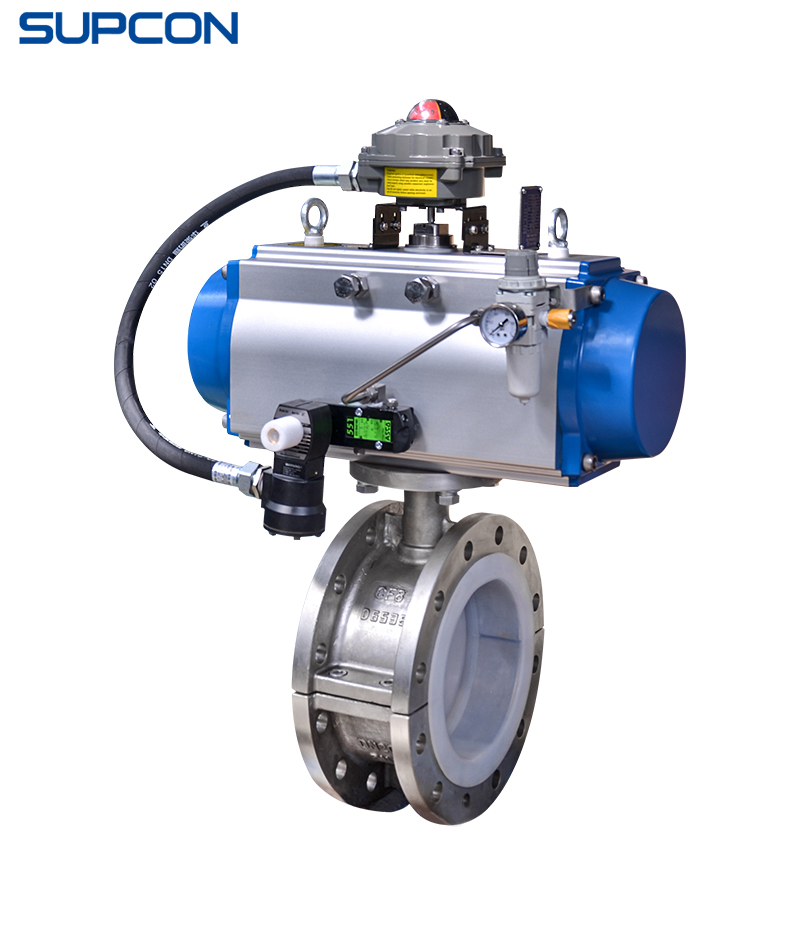

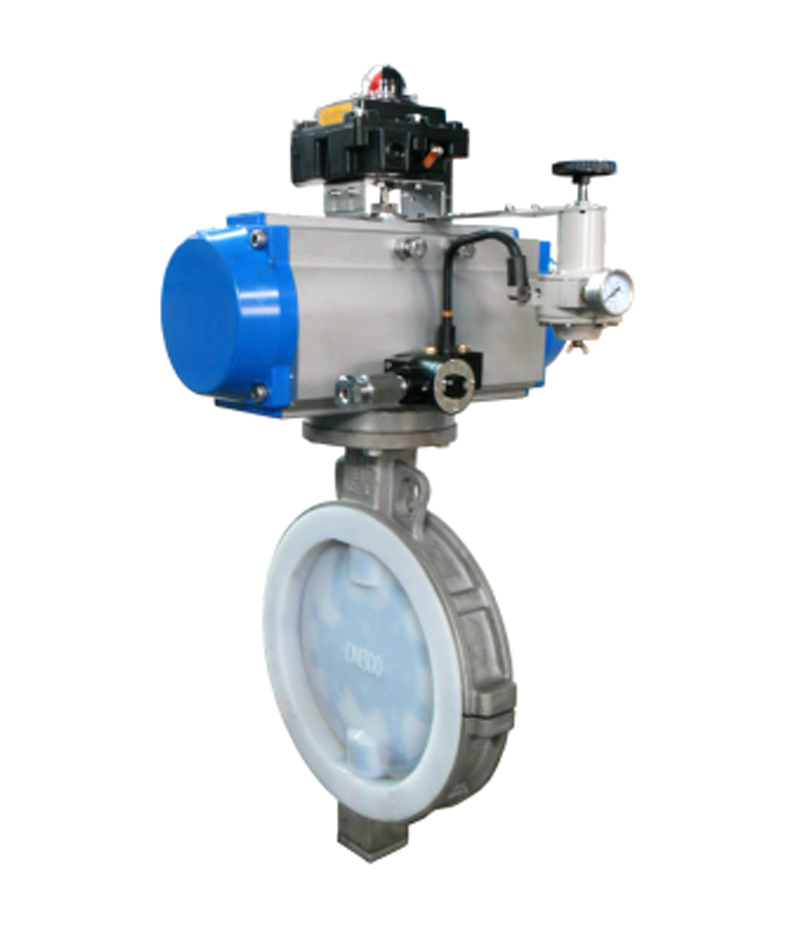

BN1101F series plastic-lined butterfly valves have both the temperature resistance of hard liner and the sealing characteristics of soft liner. When the valve works, only the perfluorinated plastic valve seat and the fluorine-lined butterfly plate are in contact with the medium.
Product Description
BN1 series plastic lined butterfly valve is a structure designed with three-dimensional eccentric principle, soft seal, soft and hard multi-level seal and full metal seal processing technology, so that the plastic lined butterfly valve in operation work, reduce its torque force, to achieve the function of labor saving and energy saving. Plastic lined butterfly valve not only can resist the severe working conditions of high temperature and pressure, but also has excellent sealing performance, hard seal valve seat sealing surface, overlay welding cobalt-based hard alloy, wear resistance, long service life.
Wide Size & Pressure Range
Available in DN15 to DN1000, covering a broad spectrum of piping requirements.
Supports multiple pressure ratings: PN6, PN10, PN16, and ANSI CL150/300/600, ensuring adaptability to different industrial needs.
Excellent Corrosion Resistance
Lined with F46 (PTFE), PFA, providing superior chemical resistance against acids, alkalis, and aggressive media.
Valve body options include WCB, CF8, CF8M, offering durability and compatibility with harsh environments.
Zero Leakage Performance
Soft seal ensures zero leakage, meeting ANSI B16.104 Class VI standards.
Metal seal options available for applications requiring higher durability and moderate leakage control (Class IV/V).
High-Performance Three-Eccentric Design
Reduces friction between the disc and seat, ensuring long service life and stable operation.
Provides quick opening (Q) and equal percentage flow characteristics, making it suitable for both on/off and throttling control applications.
High Adjustability & Precision
Adjustable ratio of 100:1, offering precise flow control.
Ensures smooth operation and high efficiency in various process systems.
Reliable Sealing & Packing
PTFE/RTFE/Flexible Graphite packing options, ensuring tight sealing and reducing fugitive emissions.
Suitable for high-temperature applications up to 150°C and low-temperature applications down to -30°C.
Unique structure, small torque
Small and light type, flexible operation, labor-saving and convenient
Reliable sealing, can meet the standards at all levels
Good flow characteristics and with adjustment function.
Adopting the principle of eccentricity, which makes the sealing surface nearly zero wear and extends the service life of the valve.
Wide application, can be used for water, steam, oil, air, gas and other media.
Temperature applicable range span, -40 ~ 570 ℃ are available in a suitable structure.
The use of corrosion-resistant and other working conditions of the pipeline.
And the pipeline connection has RF, RJ, FM and other flange type and clamping type and lug type.
The flange distance conforms to GB/T 12221-2005 / ASME B16.10 or API609.ISO5752 standard.
Chemical Industry
Used in processes such as chemical dosing, acid production, and wastewater treatment.
Water & Wastewater Treatment
Suitable for controlling water flow in treatment plants and industrial pipelines.
Pharmaceutical & Food Industry
Suitable for sterile processes, clean water systems, and chemical mixing.
Petrochemical & Oil & Gas
Withstands harsh operating environments, making it ideal for refineries, offshore platforms, and chemical injection systems.
HVAC & Power Plants
Used in cooling water systems, steam control, and process fluid handling.
Mining & Metallurgy
Suitable for handling abrasive slurries, acidic solutions, and tailings disposal in mining operations.
Anhui Zhongpu Petroleum Energy Co., Ltd, waste acid treatment project phase II
Ningbo Huatai Shengfu Polymeric Materials Co., Ltd, 700,000 tons of young hydrocarbon using 400,000 tons/year styrene plant regulating valve project
Puyang Zhonghui New Energy Technology Co., Ltd, 200,000 tons per year of naphtha benzene hydrogenation project
Qujing Yueju Chemical Co., 200,000 tons/year synthetic ammonia plant
Hebei Xuyang Coking Co., Ltd, Xuyang ammonia system
TECHNICAL PARAMETERS
| Nominal Size | DN15~DN1000 |
| Pressure Rating | PN6/PN10/PN16;CL150(PN20) |
| Operateing Temperature | -30℃~150℃ |
| Characteristics | Approximate equal percentage |
| Rangeability | / |
| Seat Leakage Class | Zero Leakage |
| Body Material | WCB+F46/CF8+F46/CF8M+F46/WCB+PFA/CF8+PFA/CF8M+PFA |
| Trim Material | WCB+F46/304+F46/316+F46/WCB+PFA/304+PFA/316+PFA |
| Seal Material |
Pressure rating: ANSI CL150/300/600; DIN PN6/10/16/25/40/63
Valve body and upper cover material: WCB/WCC; WC6/WC9; CF8/CF8M/CF3/CF3M, etc.

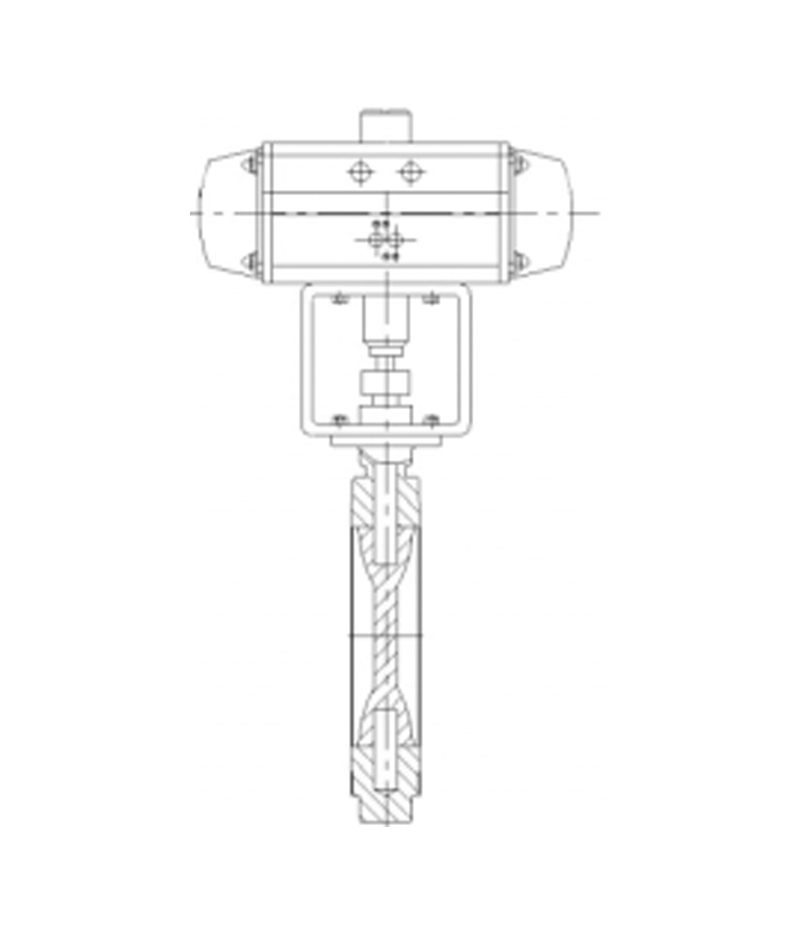

Structure form: three eccentric
Packing type: PTFE/RTFE/flexible graphite
Flow characteristics: approximate equal percentage; quick opening (Q)
Adjustable ratio: Adjustable 100:1
Allowable leakage: regulating type: ANSI B16.104 Class Ⅳ/V (metal seal); ANSI B16.104 Class Ⅵ (soft seal)
Switching type: conforming to API598 Class A
